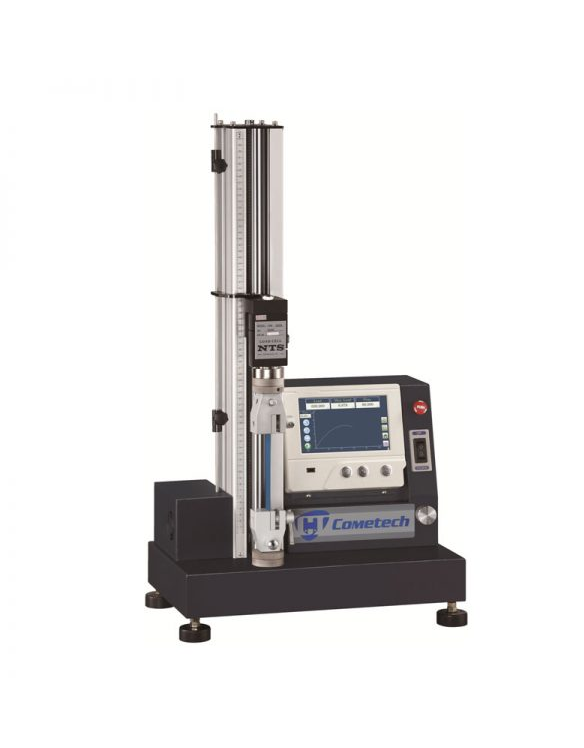

Cometech QC-528M1F 电脑拉(压)力试验机 (500N)

Max. Capacity: 500N

Units: Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short); Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution: 31 bits

Force Precision: 1/100,000

Test stroke: 400 mm (w/o grip)

Stroke resolution: 0.05mm

Space between columns: Ø70mm

Speed range:  1 ~ 600mm/min(Can be set by computer)

PC-Port: RJ45(TCP/IP) [software optional]

Data sampling rate: 400Hz (Max.)

Motor type: Step Motor

Power Supply: Single phase 100 ~ 220VAC

Option:

- Display panel: EM2FTP-001 or Software: SM1F0-04 or all (nessesary)

- Long extensometer QC-557

- Grips (nessesary)
