Desco 19270 静电计

Input Voltage and Frequency (External Adapter):

AC/DC Power Adapter

Power Input: 100-240 VAC, 50/60 Hz

Power Output: 12 VDC, 0.5 A

Cable Length: 6 ft. (1.83 m)

Operating Temperature: 70 to 85 °F (21 to 30 °C) for 1 gigohm test limit

41 to 85 °F (5 to 30 °C) for all other test limits

Environmental Requirements:

Indoor use only at altitudes less than 6500 ft. (2 km)

Maximum relative humidity of 80 % up to 85 °F (30 °C) decreasing linearly to 50 % @ 85 °F (30 °C)

Maximum relative humidity of 50 % at 1 gigohm setting

Dimensions (with mounting plate): 11.35" x 7.75" x 1.47" (288 mm x 197 mm x 37 mm)

Weight (with mounting plate): 1.2 lbs (0.5 kg)

Test Accuracy:

±20 % for 1 gigohm footwear test limit

±10 % for all other test limits

Test Switch Voltage: 5 VDC @ open circuit

Wrist Strap and Footwear Test Voltage:

30 VDC @ open circuit

Test current is limited by resistors and varies on the test range setting (100 kilohms - 1 gigohm)

Relay Contact Rating: 1 A @ 30 VDC max

Dual Foot Plate

Dimensions: 13.25" x 15.25" x 1.125" (337 mm x 387 mm x 29 mm)

Weight: 5.5 lbs (2.5 kg)

Includes:

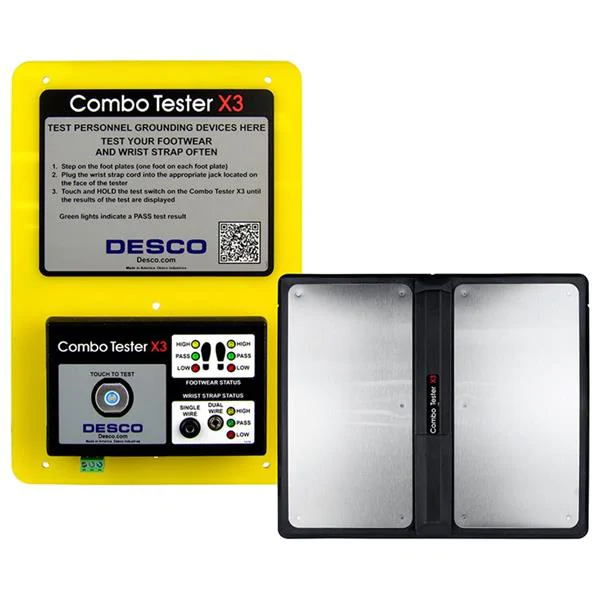

19270 COMBO TESTER X3

1 Combo Tester X3

1 Dual Foot Plate

1 Power Adapter, 12VDC, with interchangeable plugs

(North America, UK/Asia, Europe)

1 Foot Plate Cord, 6'

1 Ground Cord
