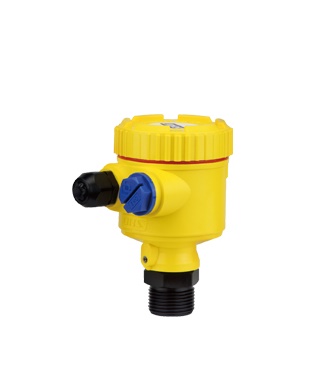

DHS DU-10-G 超音液位传感器 (100mm~1,000mm)

Wiring: 2-WIRE (Shield cable3Cx24AWG)

Range: 100~1,100mm

Deadband: 100mm

Accuracy: Full Scale 0.25%

Resolution: 1mm

Temp. Comp.: Automatic in full scale

Beamwidth: 11˚

Current consumption: Max 22mA

Supply voltage: DC24V

Output signal: CURRENT DC4~20mA(DC20~4mA)

Process Temp.: -20℃~60℃

Process pressure: 0.7~2.5Kgf/Cm2

Mounting: 1.0inch

Material: Head-PBT-FR-GF10

  Flange-PVC(OPTION)

  Ptobe-POM

Protect rating: IP65 (Option : IP68)
