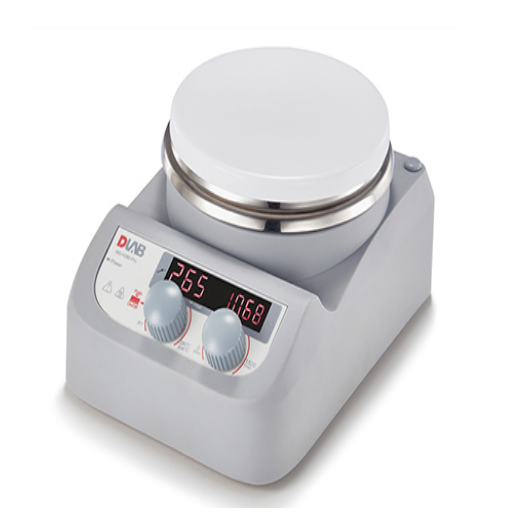

DLAB MS-H280-Pro package 1 LCD 数字磁力加热搅拌器 (200~1500rpm; ~280°C; with PT1000A)

Work plate dimension (WxD): φ135mm (5 inch)

Work plate material: stainless steel cover with ceramic

Motor type: Brushless DC motor

Stirring positions: 1

Max. stirring quantity (H2O): 3L

Max. magnetic bar (length): 50mm

Speed range: 200~1500rpm

Speed display resolution: ±1rpm

Speed display: LED

Temperature display: LED

Heating temperature range: Room temp.~280°C, increment: 1°C

Control accuracy of work plate: ±1°C (<100°C); ±1% (>100°C)

Overheating protection: 320°C

Temperature display accuracy: ±1°C

External temperature sensor: PT1000 (accuracy: ±0.5°C)

"Hot" warning: 50°C

Protection class: IP21

Motor rating input: 5W

Motor rating output: 3W

Power: 515W

Heating output: 500W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 150×260×100 mm

Weight: 1.8kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose suitable power supply below:

+ US plug, 100V~120V/50Hz/60Hz

+ Cn plug, 200V~240V/50Hz/60Hz

+ Euro plug, 200V~240V/50Hz/60Hz

+ UK plug, 200V~240V/50Hz/60Hz

Included AccessoriesPT1000A (18900016)

Optional Accessories (refer to datasheet page 72-73)
