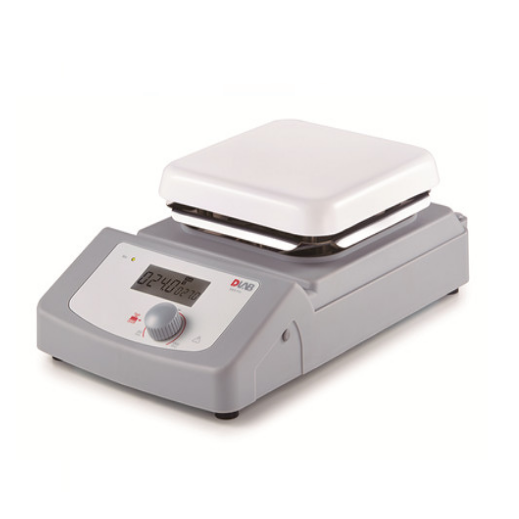

DLAB MS-S LCD数字磁搅拌器 (20L; 0~1500rpm)

Work plate dimension (WxD): φ135mm (5 inch)

Work plate material: Stainless steel cover with ceramic

Motor type: Brushless DC motor

Stirring positions: 1

Max. stirring quantity (H2O): 20L

Max. magnetic bar (length): 80mm

Speed range: 0~1500rpm

Speed display: Scale

Protection class: IP42

Motor input power: 18W

Motor output power: 10W

Power: 30W

Voltage: 100~240V; 50/60Hz

Dimension (WxDxH): 160×280×85mm

Weight: 2.8kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose suitable power supply below:

+ US plug, 100V~220V/50Hz/60Hz

+ Cn plug, 100V~220V/50Hz/60Hz

+ Euro plug, 100V~220V/50Hz/60Hz

+ UK plug, 100V~220V/50Hz/60Hz

Optional accessories (refer to Datasheet page 73)

Datasheet
