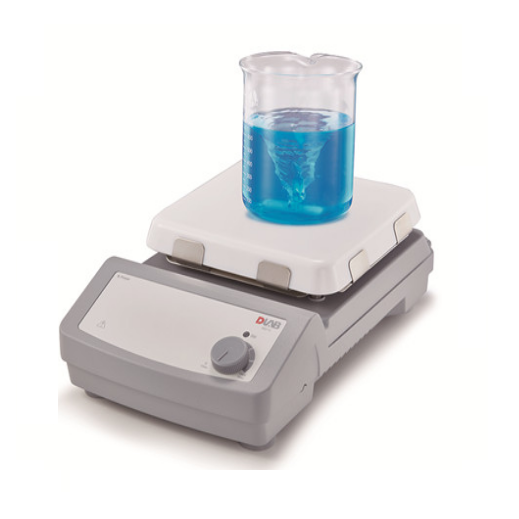

DLAB MS7-S Classic 7" 方形板磁力搅拌器 (10L; 0~1500rpm)

Work plate dimension (WxD): 184x184mm (7 inch)

Work plate material: Glass ceramic

Motor type: Shaded pole motor

Stirring positions: 1

Max. stirring quantity (H2O): 10L

Max. magnetic bar (length): 80mm

Speed range: 0~1500rpm

Speed display: Scale

Protection class: IP21

Motor input power: 15W

Motor output power: 1.5W

Power: 30W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 215x360x112mm

Weight: 3.8kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose suitable power supply below:

+ US plug, 100V~120V/50Hz/60Hz

+ Cn plug, 200V~240V/50Hz/60Hz

+ Euro plug, 200V~240V/50Hz/60Hz

+ UK plug, 200V~240V/50Hz/60Hz

Datasheet
