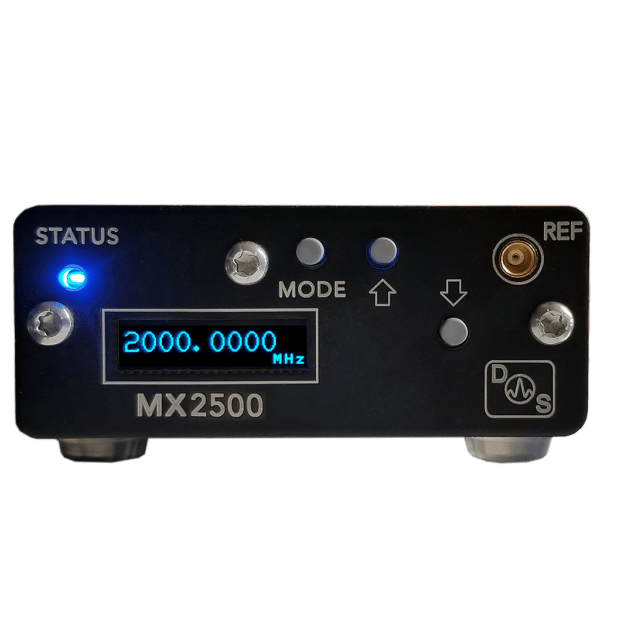

DS INSTRUMENTS MX2500 射频混频器 (1 – 1000MHz, 25-2500MHz)

Integrated 35 – 2500MHz programmable local oscillator

IF range: 1 – 1000MHz

RF range: 25-2500MHz

Typical LO to RF isolation: 35dB

Typical LO to IF isolation: 25dB

Maximum RF power input: +17dBm

Phase noise at 4.4GHz: -82dBc (10KHz offset)

Low conversion loss: < 8dB typical

Return loss: >12 dB

Typical IP3: 20dBm

Input P1dB: +5dBm

LO Harmonic level: -30dBc typical (50-2500MHz)

Reference source: ±2.5PPM 10MHz TCXO
