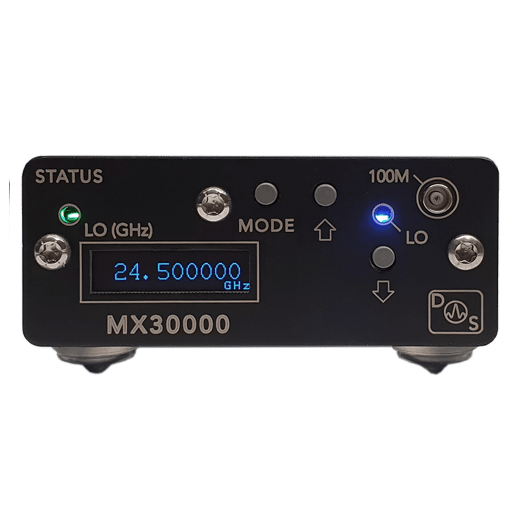

DS INSTRUMENTS MX30000 射频混频器 (MHz - 8GHz, 15 – 30GHz)

Integrated 18 – 30GHz programmable local oscillator

IF range: 1MHz to 8GHz

RF range: 15 – 30GHz

High input P1dB > +10 dBm

LO phase noise at 26GHz (10KHz offset): ~85 dBc

Low conversion loss: 9-12dB

Max RF input power: +17dBm

Typical IP3: 20dBm

LO frequency step size: 10Hz

Typical LO to RF isolation: 45dB

Typical LO to IF isolation: 35dB

Return loss: >10 dB typical

Reference Frequency: ±280PPB 10MHz TCXO & 100MHz VCXO
