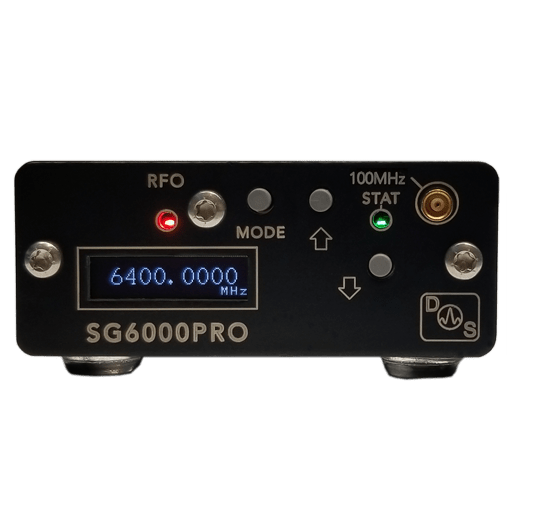

DS INSTRUMENTS SG6000PRO 纯正弦RF信号发生器 (20-7000 MHz)

Highest Harmonic Levels: -32dBc typical

Frequency Range: 20-7000 MHz

Device Power Level: -45 to +15 dBm (calibrated)

Phase Noise at 6GHz: -95dBc at 10KHz offset

Frequency adjustment step size: 2Hz

Internal Attenuator (digital): 64dB (250 x 0.25dB Steps)

Internal Attenuator (variable): ~15dB (10 bit DAC)

Dimensions: 2.75″ x 1.25″ x 4.15″

Input Voltage: 5V Standard USB-C

Output Impedance: 50 Ohm

RF Connector: Premium gold 18GHz microwave SMA
