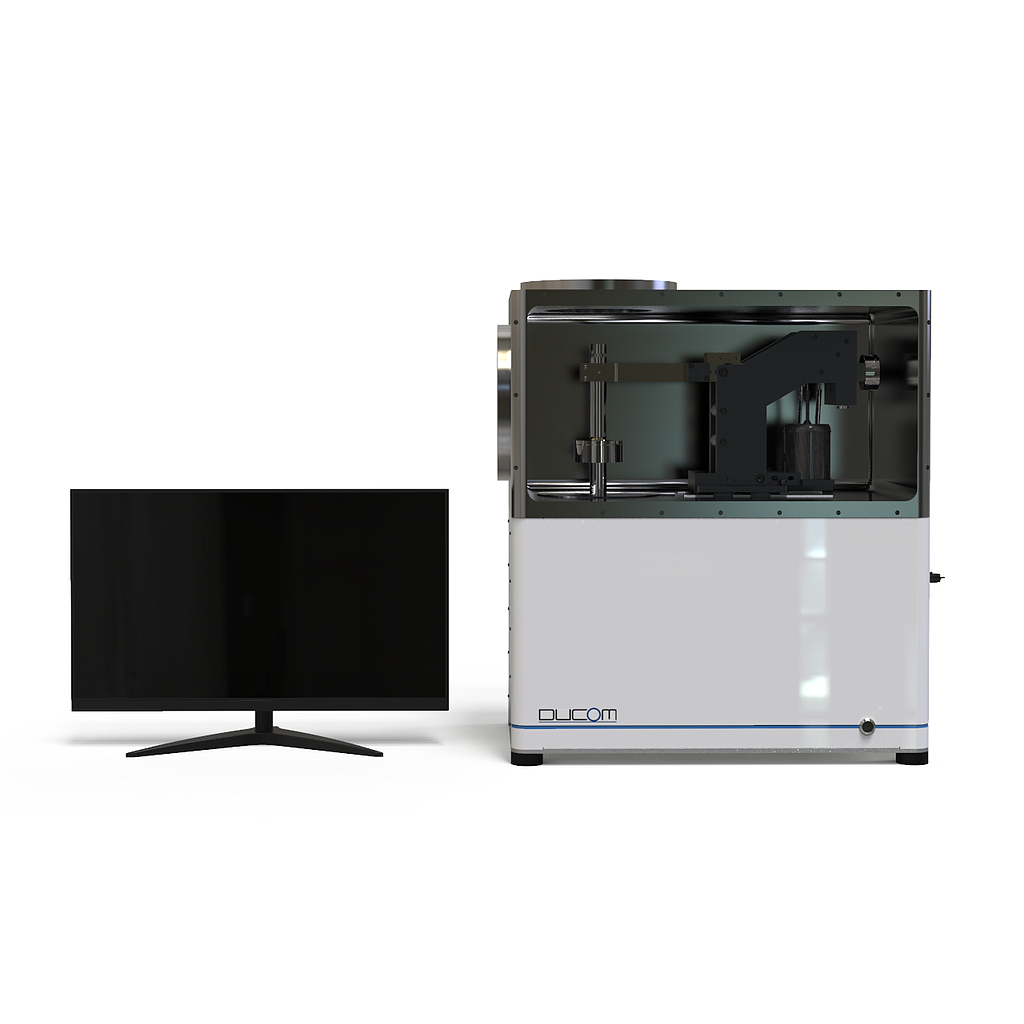

DUCOM VT-3.0 真空摩擦磨损试验机 (3000rpm, 5~180°)

Motion and Loading:

- Rotation:

     Standard: 3000 rpm

     Option: 5000 rpm

- Angular Reciprocation:

     Angle: 5 to 180 degrees

     Frequency: 20 Hz Max

  Maximum allowable parameters change depending on load, COF, angle and frequency.

- Loading:

      Deadweight: 200 N

      Automatic: 200 N

     (Optional. High frequency feedback controlled servo loop)

Environment:

- Vacuum level: 10-7 torr

- Chamber evacuation time: <45 mins

- Polished chamber

- Viewing and customization ready ports

- Inert gas environment

Sensing:

- High sensitivity capacitive friction sensor

- Ambient temperature sensor

- Sample temperature sensor

- Vacuum level sensor

Standard Options:

Low Temperature Module

High Temperature Module

Debris Collector

2D and 3D Imaging

Special / Custom Options:

Horizontally orientated test setup

Independently controlled disk and pin heating

Extra large diameter disk for increased sliding velocity
