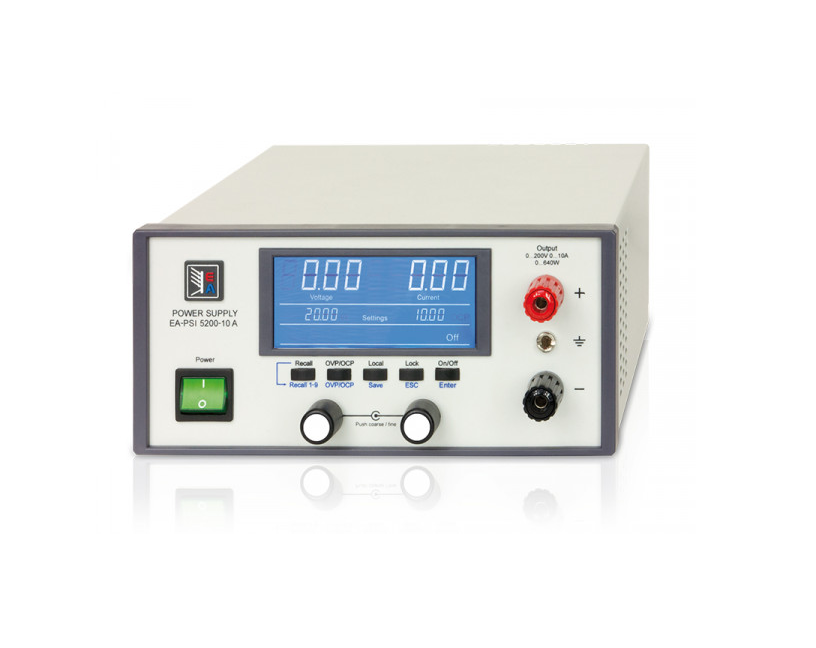

EA-Elektro-Automatik PS 5200-10 A 可编程台式直流电源 (200V; 10A; 640W)

Input voltage AC : 90...264 V

- Frequency : 45...65 Hz

- Power factor : >0.99

Output voltage DC : 0...200 V

- Load regulation 0-100% load : <0.08%

- Line regulation ±10% ΔUAC : <0.02%

- Ripple (1 ): <150 mV PP <30 mV RMS

- Regulation 10-100% load : <1.5 ms

- Accuracy (2 ): <0.2%

Output current : 0...10 A

- Load regulation 0-100% ΔUDC : <0.15%

- Line regulation ±10% ΔUAC : <0.02%

- Ripple (1 ): <32 mAPP

- Accuracy (2 ): <0.2%

Output power : 0...640 W

- Accuracy (2 ): <1%

Cooling : Fan

Operation temperature : 0...50 °C

Storage temperature : -20...70 °C

Dimensions (3) (WxHxD) : 200x87x331 mm

Weight : 4.3 kg

(1 ) RMS value: measured at LF with BWL 300 kHz, PP value: measured at HF with BWL 20MHz

(2)At 23 °C ±5 °C

(3) Enclosure only, not over all
