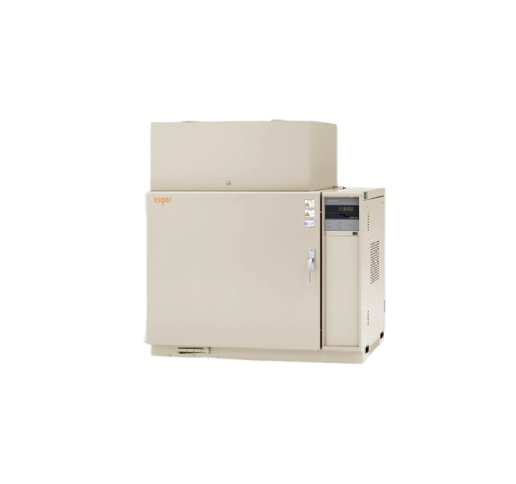

ESPEC SPH−102 带防爆门温度试验箱 (20~200℃, 91L)

System: Forced hot-air circulation / ventilation system

Performance:

     Temp. range: Ambient temp. +20℃ to +200℃

     Temp. heat-up time: Ambient temp. to +200℃ within 40 min.

Inside dimensions W×H×Dmm (in): 450×450×450 (17.7×17.7×17.7)

Outside dimensions W×H×Dmm (in): 1040×1260×635 (41×49.6×25)

Capacity (L): 91

Weight (kg): 95

Allowable ambient conditions: Temp.: 0 to +40℃

                                              Humid.: to 75%rh

Utility requirements:

     Power supply: 200 / 220 / 230 / 240V AC 1φ 50/60Hz

     Max. power consumption: 2.0 kVA

ACCESSORIES:

● Shelf (stainless steel wire for type 102・202): 2

            (stainless steel punched plate for type 302・402): 2

● Shelf bracket (stainless steel) 2 sets (4)

● Cartridge fuse: 2

● Protective wire mesh: 1 (stainless steel mesh with soft aluminium foil)

● Insulation (glass wool): 3

● Outer plate (thin soft aluminium panel): 1

● Stand bracket and hexagon socket head cap screw (for type 102・202): 4 each

● Hexagon socket screw key (for type 102・202): 1

● User's manual: 1 set
