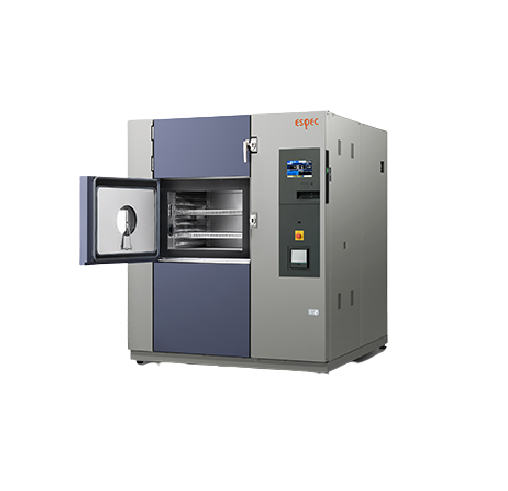

ESPEC TSA-203D-W 空-空热冲击和湿度试验箱 (70°C~150°C, -70°C~10°C)

Power supply: 200 V AC, 3 ohm, 3W, 50/60 Hz (Can support any power supply voltage as an option)

Method: Two-zone and three-zone using damper switching

Performance:

   Test area:

       High-temp. exposure range:

           Thermal cycle test: +70°C to +150°C

           Dew cycle test: -10°C to +100°C

       Low-temp. exposure range:

           Thermal cycle test: -70°C to +10°C

           Dew cycle test: -40°C to +10°C

    High temperature and humidity chamber:

           Max pre-heat setting temperature: +150°C

           Humidity range: 40 to 95%rh (For dew cycle test)

           Temperature heat-up time: Within 30 minutes from -10°C to +100°C

           Temperature pull-down time: Within 60 minutes from +20°C to -10°C

     Low temperature chamber:

           Min pre-heat setting temperature: -75°C

           Temperature heat-up time: Within 30 minutes from -75°C to +10°C

           Temperature pull-down time: Within 60 minutes from ambient temperature to -75°C

Test area dimensions: W650×H460×D670mm

Outside dimensions: W1670×H1900×D1870mm

Weight: Approx. 1550 kg
