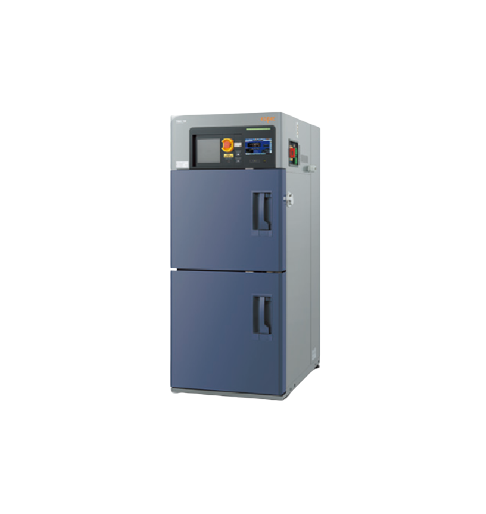

ESPEC TSE-12-A 热冲击试验箱 (60~200°C, –65~0°C)

System: 2-zone transition by vertical transfer of specimens

Performance:

    Test area:

           High temp. exposure rangre: +60 to +200℃ (+140 to +392℉)

           Low temp. exposure range: −65 to 0℃ (−85 to +32℉)

           Temp. fluctuation: ±0.5℃

     Hot chamber:

           Heat up time: Ambient temp. to +200°C within 30 min.

     Cool chamber:

           Pull down time: Ambient temp. to –80°C within 90 min.

      Temp. recovery: within 5 min.

Inside Demensions: W320×H148×D230mm (12.6×5.8×9 inch)

Outside dimensions: W680×H1745×D1050mm (26.8×64×41.3 inch)

Inner volume of test area: 10.9 L

Weight: Approx. 400 kg

Utility requirements:

       Ambient temp. range: 0 to +40℃ (+32 to +104℉)

       Power supply: 380V AC 3φ 50Hz: 17 A

                             400/415V AC 3φ 50Hz: 17 A

Exhaust heat rate: 17,585kJ/h (4200 kcal/h)

ACCESSORIES:

● Specimen basket:

   (18-8 Cr-Ni stainless steel, 5 mesh metal basket) W320×H35×D230mm /load capacity: 2kg: 2

● Cartridge fuse: 3A, 5A,7A (380/400/415V AC): 1each

● Cable port rubber plug: 2

● Wirefisher : 1

● Operation manual : 1
