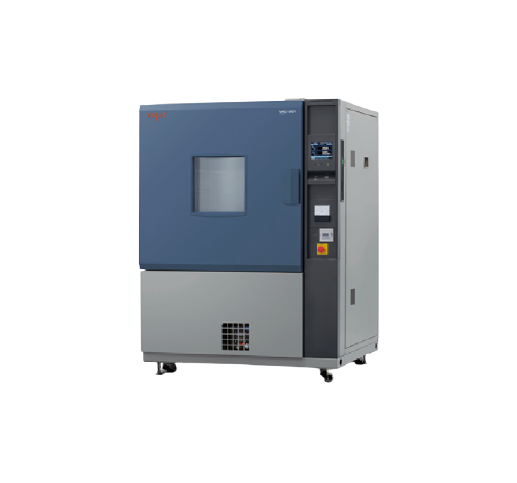

ESPEC VAC−301P 真空炉 (40~200℃, 933×102~1×102 Pa, 512L)

Pressure control system: PID control

Temperature performance:

      Temperature range: ＋40 to ＋200℃ (＋104 to ＋392℉)

      Temperature constancy: ± 0.5℃ (vacuum), ±1℃ (atmospheric)

      Time to reach extreme temperature value: Within 80 min.

Pressure performance:

      Pressure range: 933×102 to 1×102 Pa

      Ambient pressure: Less than 133 Pa

      Pull-down time: From atmospheric pressure to 133 Pa within 30 min.

      Atmospheric pressure recovery time: Inlet open to atmosphere within 15 min.

Fittings: Leveling feet and casters (free wheel) 4pcs each, Time signal terminals × 2pcs

Effective internal volume: 512 L

Effective internal dimensions: W800×H800×D800 mm

Outside dimensions: W1252×H1762×D1132 mm

Weight: 610 kg

Shelf support load resistance: up to 100kg (20kg/ stage, Total load of 5 stages)

Test area load resistance: up to 100kg

Allowable ambient conditions: ＋12 to ＋35℃ (＋41 to ＋ 95℉)

Power supply:

       380V AC 3φ 50Hz CE: 8.2 A

       400V AC 3φ 50Hz CE: 7.9 A

ACCESSORIES:

● Breaker handle stopper: 1

● Cartridge fuse (3A): 1

● User's manual: 1

● Warranty card: 1
