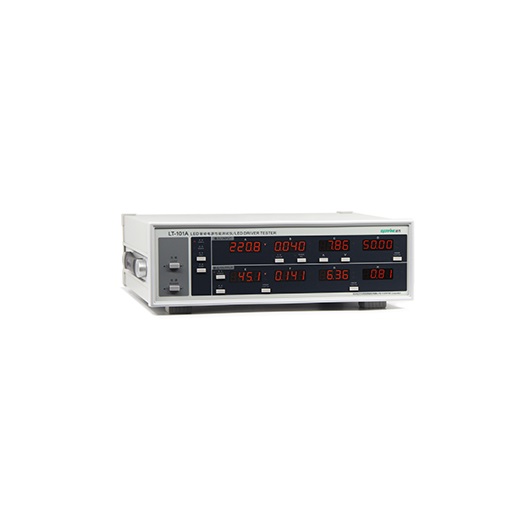

EVERFINE LT-101A LED Driver Tester

Measurement function: Measure voltage RMS,current RMS,active power,power factor,frequency,voltage & current total harmonic distortion,true RMS and relative value of 0~50th harmonics.

Selection of input current bandwidth: narrowband (20Hz ~ 5kHz), wideband (20Hz ~ 1MHz)

Harmonic analysis function: THD and 2nd~50th harmonics

Input characteristic measurement range

Voltage: 3V~300V

Current: 0.010A~5.000A

Frequency: DC,20Hz~65Hz

Bandwidth: Narrow band is 5 kHz,wide band is 1MHz

Accuracy: ±(0.1%F.S.+0.1%R.D.)
