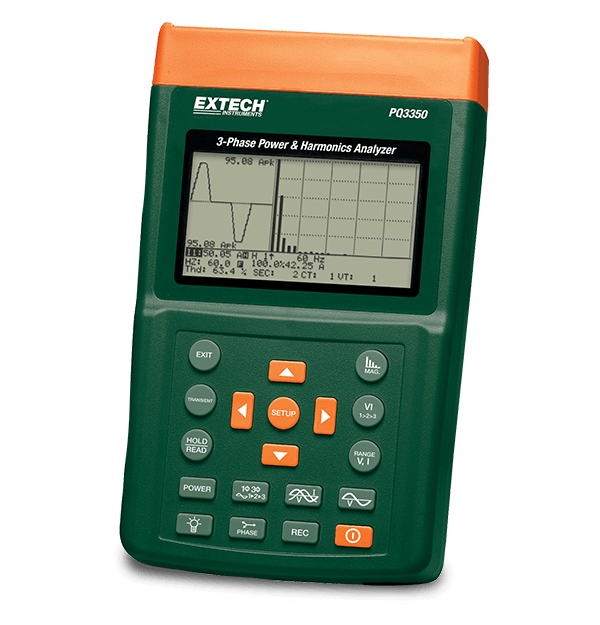

EXTECH PQ3350 三相功率和谐波分析仪

GENERAL SPECIFICATIONS

AC Current: up to 3000A (depends on the current clamp probes used)

AC Current Basic Accuracy: ±(0.5% of reading + 5 digits)

AC Voltage: 600V

AC Voltage Basic Accuracy: ±(0.5% of reading + 5 digits)

Active Power: 9.999MW

Active Power Basic Accuracy: ±(1% of reading + 8 digits)

Active Power Energy: 0mWh to 999,999kWh

Apparent Power: 9999kVA

Apparent Power Basic Accuracy: VA=Vrms x Arms

Crest Factor: 1.00 to 99.99

Crest Factor Basic Accuracy: ±(5% of reading + 30 digits)

Frequency: 45-65Hz

Frequency Basic Accuracy: 0.1Hz

Harmonics: 1 to 99

Harmonics Basic Accuracy: ±2%

Memory: 52428 records (single phase); 17476 records (3 phase)

Peak AC Current Basic Accuracy: ±(5% of reading + 30 digits)

Peak AC Voltage Basic Accuracy: ±(5% of reading + 30 digits)

Phase: -180.0° to 0° to +180.0°

Phase Basic Accuracy: ±1°

Power Factor: 0.0 to +1.00

Power Factor Basic Accuracy: ±(1.5%° of reading ± 8 digits)

Reactive Power: 9999kVAR

Reactive Power Basic Accuracy: VAR= sqr (VA² -W² )

Reactive Power Energy: 0.0kVARh to 1000MWh

True RMS: Yes

ADDITIONAL DETAILS:

Certifications: CE

Dimensions: 10.1 × 6.1 × 2.3" (257 × 155 × 57mm)

Power: 8 × AA (1.5V) batteries

Safety Category: CATIII - 600V

Weight: 2.5 lbs (1160g)
