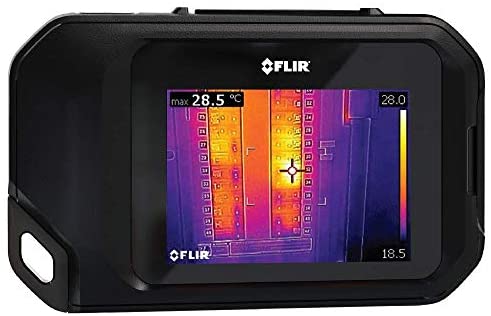

FLIR C3-X 热像仪 (-20 ~ 300°C, 128 × 96)

IR sensor: 128 × 96 (12,288 pixels)

Thermal sensitivity/NETD: <70 mK

Field of view (FOV) 53.6°

Minimum focus distance Thermal: 0.1 m (3.94 in)

MSX®: 0.3 m (11.8 in)

Image frequency: 8.7 Hz

Focus: Focus free

Spectral range: 8–14 µm

Screen size: 3.5 in

Digital camera: 5 MP

Digital camera focus: Fixed

Measurement & Analysis

Object temperature range: -20 to 300°C (-4 to 572°F)

Accuracy: 0 to 100°C (32 to 212°F): ±3°C (±5.5°F)

          100 to 300°C (212 to 572°F): ±3%

[Ambient temp.: 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]

Measurement functions: Spot

                    Box with max./min.

Measurement correction: Emissivity; matt/semi-matt/semi-gloss + custom value

Reflected apparent temperature

Atmospheric compensation


Image Storage

Storage media: Internal memory and onboard FLIR Ignite cloud connectivity

Image storage capacity: >5000 images

Image file format: Standard JPEG, 14-bit measurement data included

Communication & Connectivity

USB: USB 2.0, Type-C connector

Bluetooth®: PAN

Image upload: Directly upload images to FLIR Ignite cloud library and services

Additional Information

Battery type Rechargeable: built-in Lithium ion battery

Battery operating time: 4 hours

Charging system: USB-C (1 A)

Charging time: 2 hours

External power operation: 5 V, USB-C

Operating temperature range

-10 to 50°C (14 to 122°F)

Storage temperature range

-40 to 70°C (-40 to 158°F)

Encapsulation Camera housing and lens: IP54 (IEC 60529)

Drop test Designed for 2 m (6.6 ft)

Weight (including battery): 0.19 kg (0.42 lb)

Size (L × W × H): 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)

Tripod mounting: (built-in) UNC ¼”-20

Detail

Datasheet
