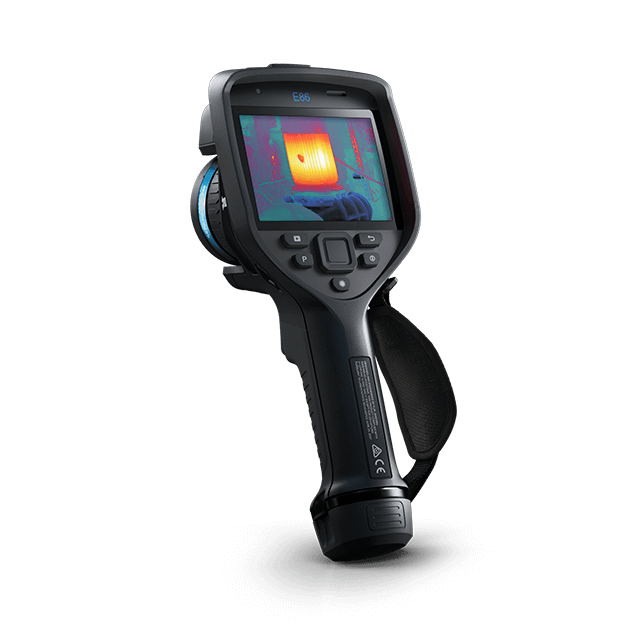

FLIR E86 Advanced Thermal Imaging Camera (1500°C, 464x384px, 1-4x)

IR resolution: 464 x 384 pixels

Resolution with UltraMax® enhancement: 645,888 pixels

MSX® image enhancement Yes: details from visual camera add depth and perspective

Built-in visual camera: 5MP, fixed focus, with built-in LED light

Thermal sensitivity: <30 mK @ 30°C (86°F), 42°lens

Temperature range: -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)

Accuracy: ±2°C (±3.6°F) or 2% of the reading

Focus mode: Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Digital zoom: 1-4x continuous

Measurement tools: 3 spotmeters in live mode, 1 area meter in live mode

Measurement presets: Non, center spot, hot spot, cold spot, 3 spots, hot spot - spot

Available lenses: 14°, 24°, 42°, macro (2x)

Lens identification: Automatic (FLIR AutoCalTM)

1-Touch Level/Span

Laser pointer

On-camera routing software: FLIR Inspection RouteTM - enabled

On-camera report building: Voice annotation and GPS tagging to images and video; on-screen text; sketch on infrared images from touchscreen

FLIR software integration: FLIR Thermal Studio Starter, FLIR Thermal Studio, FLIR Thermal Studio Pro, FLIR Research Studio

Radiometric JPEG: Yes

IR, radiometric, visual video recording: Yes

IR, radiometric, visual video streaming: Yes, over UVC (radiometric, non-radiometric, visual) and Wi-Fi (non-radiometric, visual)

Communication modes: USB 2.0, Bluetooth, Wi-Fi, DisplayPort


Display: 640 × 480 pixels (VGA) Dragontrail® touchscreen

Drop-testing: 2m (6.6 ft)

Battery operation time: > 2.5 hours, typical use

Note: Choose 1 of the following lenses

14°, 29 mm lens

24°, 17 mm lens (commonly chosen)

42°, 10mm lens
