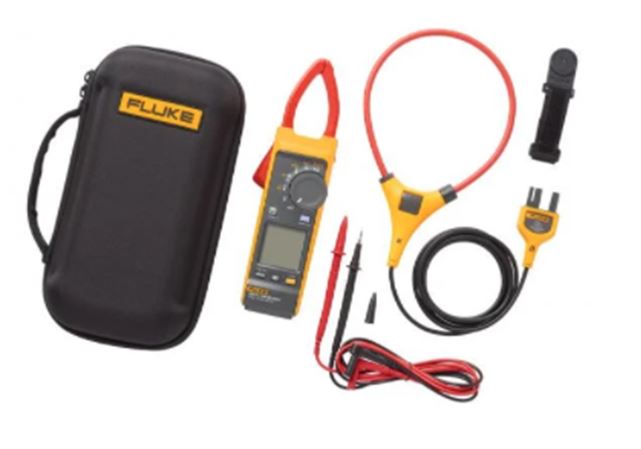

FLUKE FLUKE-393 FC/CN 钳形表 (FLUKE-393 FC, AC 1000A, WIHT 2500 A)

DC Current

Range: 999.9 A

Resolution: 0.1 A

Accuracy: 2% of reading + 5 digits.

AC Voltage

Range: 600.0 V/ 1000 V

Resolution: 0.1 V (<600.0 V)/ 1 V (<1000 V)

Accuracy: 1% of reading + 5 digits (20 Hz to 500 Hz)

DC Voltage

Range 600.0 V/ 1500 V

Resolution: 0.1 V (<600.0 V)/ 1 V (<1500 V)

Accuracy: 1% of reading + 5 digits

mV dc

Range: 500.0 mV

Resolution: 0.1 mV

Accuracy: 1% RD + 5 digits

Current Frequency: Clamp

Range: 5.0 Hz to 500.0 Hz

Resolution: 0.1 Hz

Accuracy: 0.5% of reading + 5 digits

Starting level

5 Hz to 10 Hz, ≥10 A

10 Hz to 100 Hz, ≥5 A

100 Hz to 500 Hz, ≥10 A

Current frequency: Current software input

Range: 5.0 Hz to 500.0 Hz

Resolution: 0.1 Hz

Accuracy: 0.5% of reading + 5 digits

Starting level:

5 Hz to 20 Hz, ≥25 A

20 Hz to 100 Hz, ≥20 A

100 Hz to 500 Hz, ≥25 A

Applicable power frequency

Range: 5.0 Hz to 500.0 Hz

Resolution: 0.1 Hz

Accuracy: 0.5% of reading + 5 digits

Starting level:

5 Hz to 20 Hz, ≥5 V

20 Hz to 100 Hz, ≥5 V

100 Hz to 500 Hz, ≥10 V

DC power supply

Range:

600.0 kVA (600.0 V dc range)

1500 kVA (1500 V dc range)

Resolution: 0.1 kVA/ 1 kVA

Accuracy:

Reading 2% + 2.0 kVA

Reading 2% + 20 kVA

Resistance

Range: 600.0 Ω/ 6000 Ω/ 60.00 kΩ

Resolution : 0.1 Ω (<600.0 Ω)/ 1 Ω (<6000 Ω)/ 0.01 kΩ (<60.00 kΩ)

Accuracy: 1% of reading + 5 digits

Capacitance

Range: 100.0 μF/ 1000 μF

Resolution: 0.1 μF (100.0 μF)/ 1 μF (1000 μF)

Accuracy: 1% of reading + 5 digits

Trigger level from: 5 A
