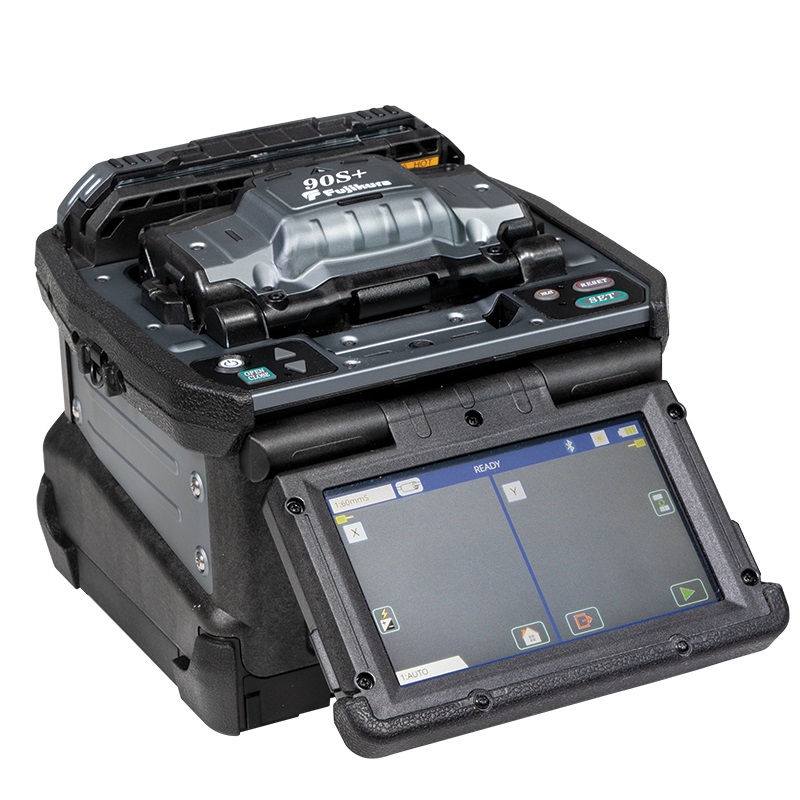

Fujikura 90S+ Core Alignment Fusion Splicer (SM FAST: 8~10s; AUTO: 14~16s)

Fiber alignment method: Active core alignment

Fiber count can be spliced: Single fiber

Applicable fiber

- Fiber Type:

+ Single mode optical fiber

+ Multi mode optical fiber

Fiber splice performance:

- Splice loss

+ ITU-T G.652: Avg. 0.02dB

+ ITU-T G.651: Avg. 0.01dB

+ ITU-T G.653: Avg. 0.04dB

+ ITU-T G.655: Avg. 0.04dB

+ ITU-T G.657: Avg. 0.02dB

- Splice loss

+ SM FAST mode: Avg. 8 to 10 sec.

+ AUTO mode: Avg. 14 to 16 sec.

Fiber tensile test force: Approx. 2.0N

Electrode life: Approx. 5.000 splices

Physical description without projection (WxDxH): Approx. 170x173x150mm

Weight: Approx. 2.8 kg including battery

Environmental condition

Temperature operate: -10 to 50°C

Storage: -40 to 80°C

Humidity operate: 0 to 95% RH non-condensing

Storage: 0 to 95% RH non-condensing

Altitude: Max. 5.000m

Ac Adaptor: Input AC100 to 240V, 50/60Hz, Max. 1.5A

Battery pack

- Type rechargeable Lithium Ion

- Output Approx. DC14.4V / 6,380 mAh

- Capacity Approx. 300 splice and heat cycles

- Temperature:

+ Recharge: 0 to 40°C

+ Storage: -20 to 30°C

- Battery life: Approx. 500 recharge cycles

Display:

- LCD Monitor: TFT 5 inches with touch screen

- Magnification: 200 to 320x

Illumination: V-Grooves: LED lamp

Interface

- PC: USB2.0 Mini B type

- External led lamp: USB2.0 A type, Approx. DC5V, 500 mA

- Ribbon stripper: Mini DIN 6 pin, DC12V, Max. 1A

- Wireless: Bluetooth 4.1 LE

Data storage

- Splice mode: 100 splice modes

- Heat mode: 30 heat modes

- Splice result: 20.000 splices

- Splice image: 100 images

Included supply:

Core alignment fusion splicer Fujikura 90S+

Battery Pack

AC Adapter

AC Power Cord

USB Cable

Fusion Splicer Strap

Electrodes (spare)

Fiber Holder Set Plate

Carrying Case

Work Tray Left

Work Tray Right

Work Tray J-Plate

Tripod Screw

Carrying Case Strap

Alcohol Dispenser

Quick Reference Guide

Single Fiber Stripper

High precisionl Fiber Cleaver CT50

Buffer Tube Cutter

Cable Sheath Cutter (Outer Jacket Slitter and Cutter)
