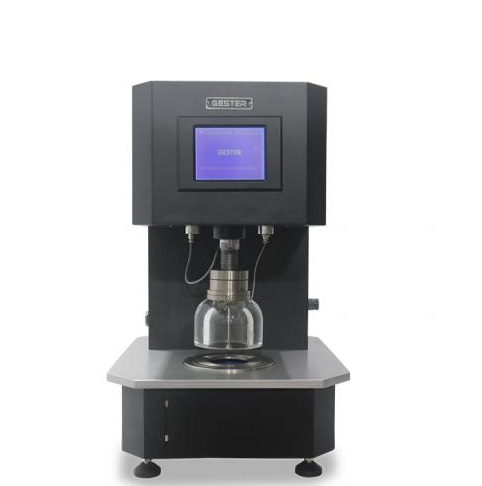

GESTER GT-C12A-2 Bursting Strength Tester (10.000Mpa)

Range: 10.000Mpa

The min. Division value: 0.003Mpa

Test area : 7.3 cm2 (Φ30.5mm), 10 cm2 (Φ35.7mm), 50cm2 (Φ79.8mm), 100 cm (Φ112.8mm) can be option

Thickness of rubber diaphragm:≤2mm

Pressure speed: 20ml/min - 600ml/min

Maximun expansion height: 75 ± 0.02mm

Testing units: Kpa, kgf/ cm2, atm, mmHg, lb/in2  free shift

Test method:

  • Constant Rate Bursting

  • Constant Expansion

  • Constant Pressure

  • Constant Time Bursting

Output: Printer ,display output, and can be connected to the computer

Power supply: AC 220V 50/60HZ  200W

Dimensions: 550×450×700mm

Net weight: 125kg
