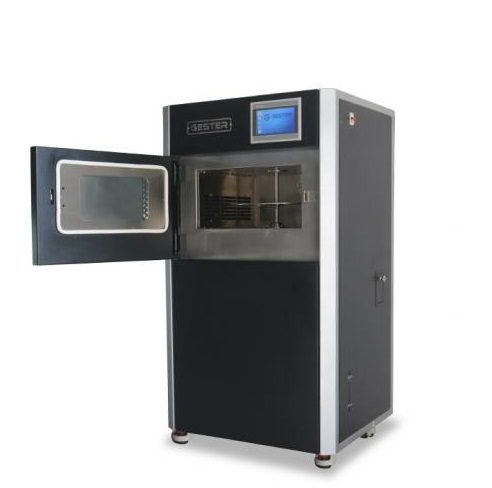

GESTER GT-C28-1 Fabric Water-Vapour Transmission Tester

Water vapour permeability cups: 1 layer, 8pcs

Test chamber temperature: RT~50℃

Resolution: 0.1℃

Accuracy of temperature: ±0.5℃

Weighing function: No

Testing method: Upright cup method

Humidity of testing chamber: 40%RH~95%RH

Resolution: 0.1%RH

Accuracy of humidity: ±1%RH

Testing time: 0.1~999.9h (can be changed into “min”)

Speed of circulating air:0.1~0.8m/s

Breathable area:

2826mm² (∮60mm GB12704) or 4534mm² (∮76mm ASTM E96)

Or 5408mm² (∮83mm BS 7209) or 2826mm² (∮60mm JIS L1099)

Dimension: 740×670×1185mm

Weight: 200kg

Power supply: AC 220V 50/60HZ 4KW
