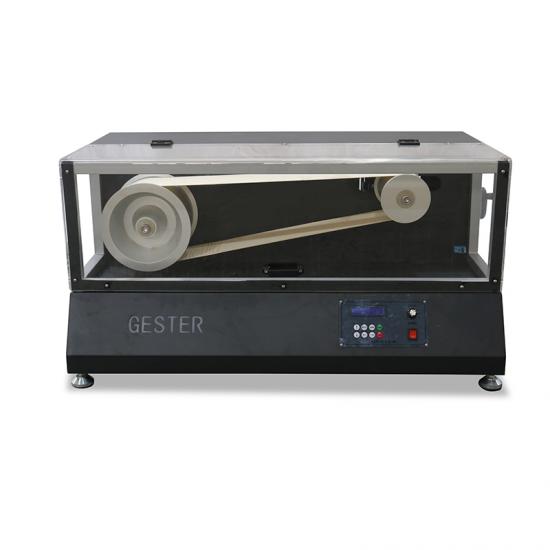

GESTER GT-KB35 鞋类外底皮带弯曲测试仪 (L:1930±50mm,W:140±5mm )

Canvas belt size: Length :1930±50mm; Width :140±5mm

Driven roller: Diameter: 225±5 mm; Width: 170±20 mm

Free roller 1 for typical sole units test: Centre Diameter : 90.0 ± 0.5mm; Ends Diameter : 87±1 mm ; Width: 170±20mm

Free roller 2 for very flexible sole units test: Centre Diameter: 60.0 ± 0.5 mm; Ends Diameter : 57±1 mm; Width: 170 ± 20 Free roller 3 for very rigid sole units: Centre Diameter : 120.0 ± 0.5mm; Ends Diameter : 117±1 mm; Width: 170±2 mm

Belt rotate speed: 90±8 CPM

Sampling: MAX.6 pcs

Counter: LCD~999,999

Power supply: 1∮ AC 220V 50/60HZ 3A

Dimensions(WxDxH): 131cm x 82cm x 69cm

Weight(Approx): 170kg

Standards: SATRA TM 133
