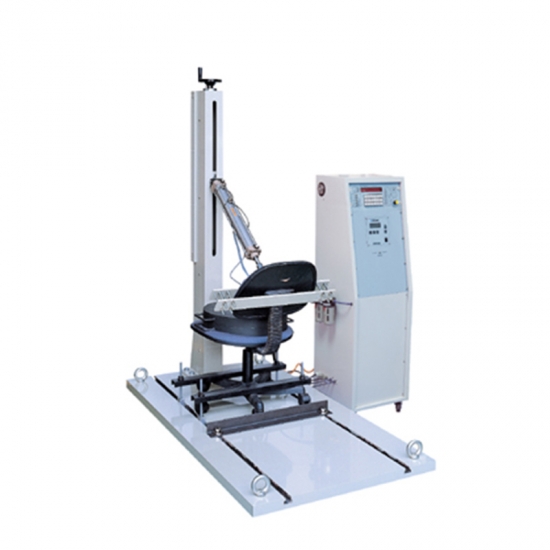

GESTER GT-LB13 座椅靠背和倾斜机构耐久性试验机 (2000N)

Load cell capacity: 2000N

Seat load weights: 102kg (225Lb) (weights accumulation)

Back loading force value: 334N (75Lb)/ 445N (100Lb)/ Can be set

Back loading position:

Backrest height > 452mm: 406mm

Backrest height < 452mm: Load on the top of backrest

Back loading force direction: Angle: 90°±10°

Test speed: 10~30 times/min

Test times: 0~999999 times, settable

Force adjustment method:Servo valve + Force sensor

Control: PLC touch screen control

Dimensions (W*D*H): 136*66*140cm

Gap source: Stable gas supply (>6kgf/cm^2)

Power: 1φ, AC 220V, 50/60 HZ 3A
