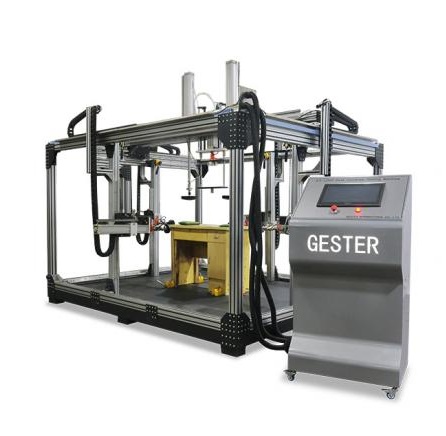

GESTER GT-LD09 家具桌椅万能试验机

Control mode: PLC control

The Max. length of specimen: 3m

Load cell: 2.5KN

Machine Dimensions: 320cm×250cm×200cm(L×W×H)

Test Standards:

- Desk: EN 1730-2012 Section 6.2, 6.3, 6.4,6.5, 6.6, 6.7,6.9, 7.2, 7.3 ,

BS EN 15372-2016 Test1, Test2,Test3,Test5, Test6,Test8,Test10,

AS NZS 4610.3-1999 Annex B,D,E,G,N,P,R

AS NZS 4442-1997 Annex A,B,H,J

- Bed: EN 1725 Section 7.2, 7.3, 7.4, 7.5, 7.6, 7.7

Testing Methods -Desk Standard EN 1723

1. 6.2 Horizontal static load test

2. 6.3 Vertical static load tests

3. 6.4 Horizontal durability and stiffness test

4. 6.5 Vertical durability test

5. 6.6 Vertical impact test

6. 6.7 Deflection of table tops

7. 6.9 Drop test

Testing Methods -Bed Standard EN 1725

1. 7.3 Durability test

2. 7.4 Vertical impact test

3. 7.5 Durability of bed edge

4. 7.6 Vertical static load test

5. 7.7 Vertical static load test of the edge of the bed

Standard Accessories:

- Horizontal loading device 4 sets

- Vertical loading device 2 set

- Impact device 1 set

- GT-LB01-5 Local loading pad 6 pcs

- Stoppers 4 pcs

- Servo cylinder 7 pcs

- Load cell 6 pcs

- Electric Proportional Valve 6 pcs

- Motor 1 set

- GT-LB01-6 Seat Impactor Device 1 Set

- GT-LB01-3 Smaller seat loading pad 2 pcs

- GT-LB01-2 Seat loading pad 2 pcs

- English Manual

- Certificate of Quality
