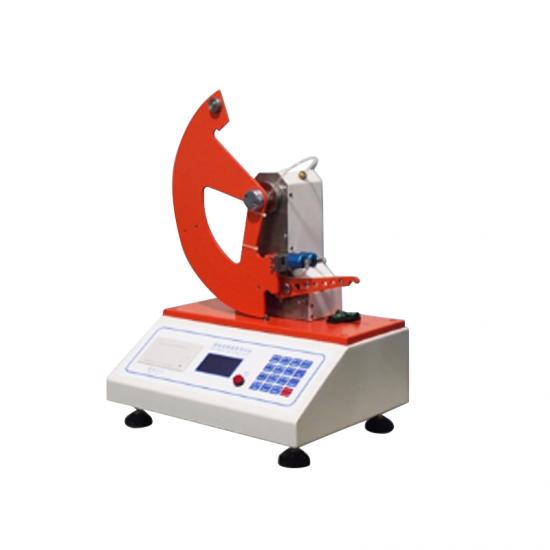

GESTER GT-N01B 电脑控制纸张撕裂强度测试仪

Measuring Range: A range: (50~8000); B Range: (8000~ 16000)mN; TAPPI: 2000, 4000, 8000, 16,000, 32,000mN

Tear arm: 104±1mm; TAPPI: 102.7±0.1 mm

Tear initial angle: 27.5±0.5 degree

Tear distance: 43±0.5mm; TAPPI: 43±0.2mm

Clip paper size: ≥25 x 15.9±0.1mm

Jammed device distance: 2.8±0.3 mm

Specimen dimension: (63±0.15)mm x(50±2)mm

Test Reading: Within the scope of 20%-80% of full range

Clamping method: Pneumatic clamping

Human-computer interface: Real-time display the testing result by LCD

Data printing: Thermal printer is equipped inside

Dimensions: 510x400x565mm (LxWxH)

Weight: 30 kg
