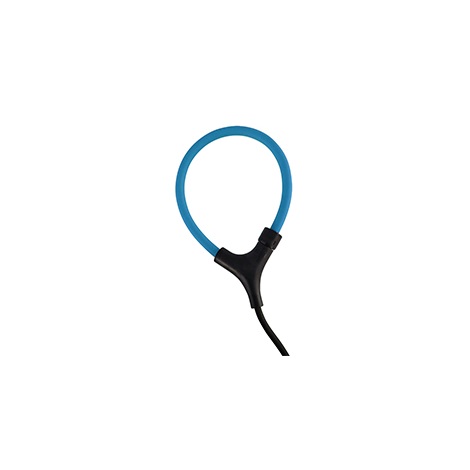

GFUVE FQ-RCTA01-55 Flexible Rogowski Type Clamp On AC Measurement Current Probe (10A~6000A)

Current Range: 10A~6000A

Frequency: 45Hz~600Hz

Output voltage

        Rated current: 250A, 500A, 800A, 1000A

        50Hz: 333mV; 1mV/A

Max output: 3.0V AC max

Accuracy: <1% @25°C (45-65Hz)

Phase error: <60’ @25°C (45-65Hz)

Output sensitivity: 1%

Linearity error: ±0.2%

Position sensitivity: ±2%

External influence: ±1.5% Max

Power supply: 10-30VDC,30mA Max.
