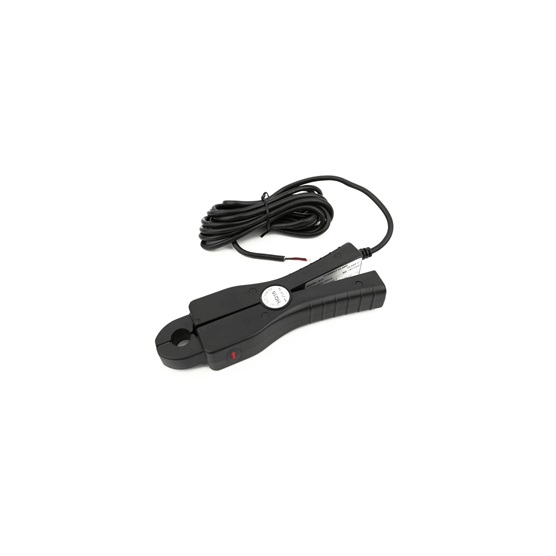

GFUVE HQ15-A100 High-Value Voltage Output AC Current Clamp Sensor (100A)

Rated primary current: 100A AC

Output Voltage: 1mV AC/A

Maximum input current: 130A AC (Continuous)

Amplitude accuracy: ±0.3%RD±0.02%FS (10%-100%I1n),(45Hz- 66Hz)

Phase accuracy: ±2° (10%-100%I1n)(45Hz-5kHZ)

The amplitude frequency characteristic: ±0.1% (45Hz-5kHZ)(Deviation accuracy)

Conductor impact: ±0.5 (Off-center)

The influence of external lectromagnetic fields: ≤0.1A (In AC 400A / m electromagnetic fields)

Temperature coefficient: ±0.02%/°C of the reading data

Dielectric strength: 3000 V AC rms/Continue 15 seconds(Circuits-iron core, iron core-shell)

The maximum rated voltage: 300V AC rms

Applicable standards: Safety: EN61010-2-032:2002,300V CAT III, Contamination II

EMC: EN61326:1997+A1:1998+A2:2001+A3:2003(Class A)


Measurable conductor diameter: Max.15mm

Cable length: About 3m

Dimension (W x H x D): About 46×135×21 (Excluding protruding parts)

Weight: About 230g


Operating temperature: 0 to 50°C (32-122°F)

Operating humidity: ≤80%RH(No condensate)

Storage temperature: -10 to 60°C (14-140°F)

Storage humidity: ≤80%RH(No condensate)

Operating environment: Indoor, altitude up to 2000 meters
