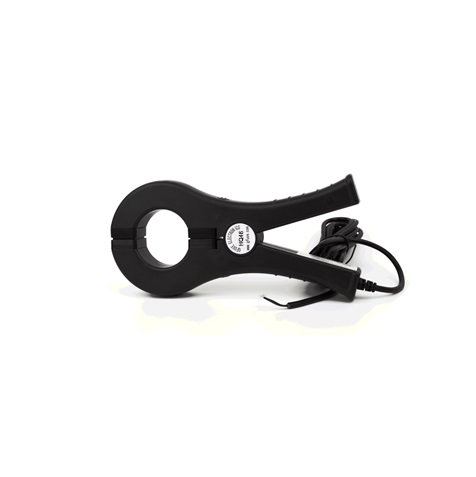

GFUVE HQ46 Cable Type 500a MV Output AC Clamp On Current Probe (500A)

ELECTRICAL PARAMETERS

Rated primary current: 500A AC

Output voltage: 1 mV AC/A

Amplitude accuracy: ±0.3%RD±0.02%FS (10%~100%I1n), 45Hz- 66Hz|Wire centered

Phase accuracy: ±0.5°(10%~100%I1n) (45Hz-5kHZ)

The amplitude frequency characteristic: ±1% (45Hz-5kHZ) (Deviation accuracy)

Conductor impact: ±0.5% (Off-center)

The influence of external lector magnetic fields: ≤0.1A (In AC 400A/m electromagnetic fields)

Maximum input current: 550A AC (Continuous)

(45-66Hz, Ambient temperature 50°C)

Temperature coefficient: ±0.02%/°C of the reading data

Dielectric strength: 5500 V AC rms/Continue 15 seconds (Circuits-iron core, iron core-shell)

The maximum rated voltage: 600V AC rms

Applicable standards: Safety: EN61010-2-032:2012,600V CAT III, Contamination II

EMC: EN61326:1997+A1:1998+A2:2001+A3:2003 (Class A)

MECHANICAL PARAMETERS

Measurable conductor diameter: Max.46mm

Cable length: About 3 m

Dimension (W x H x E): About 96×160×40 (Excluding protruding parts)

Weight: About 395g

ENVIRONMENTAL CONDITIONS

Operating temperature: 0 to 50°C (32-122°F)

Operating humidity: ≤80%RH(No condensate)

Storage temperature: -10 to 60°C (14-140°F)

Storage humidity: ≤80%RH(No condensate)

Operating environment: Indoor, altitude up to 2000 meters
