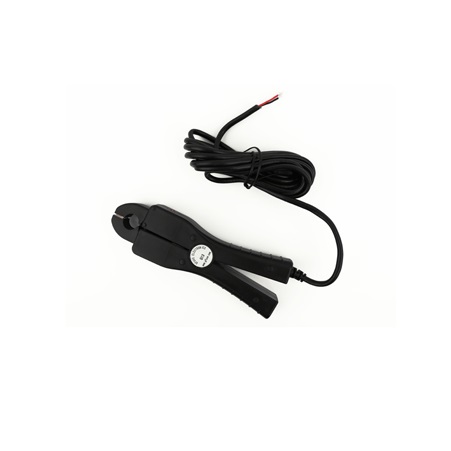

GFUVE Q13 CE Ul 欧洲廉价 MA 输出分体式磁芯交流电流探头 (0 - 100A AC; 0 - 100mA AC)
制造商: GFUVE Model: Q13 来源: China 保障: 12 Month - 报价要求
- 联系
Electrical parameters
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.1%, 0.2%
Primary current: 0 - 100A AC
Secondary current: 0 - 100mA AC (customized)
Max. Cont. Input current: 120A
Over voltage category: CAT III 600V
Output signal (AC current): 100mA AC at nominal input current
Output signal (AC voltage): 100mV,1V AC at nominal input current
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1
Installation: Clamp type
Output mode: Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H)(mm): 45 x 160 x 25(2.5m)
Weight (g): 300
Holding wire diameter (mm): φ13
Max. jaw opening (mm): 13
Color: Black
Material: PC+ABS+Polycarbonate, UL94 V0
