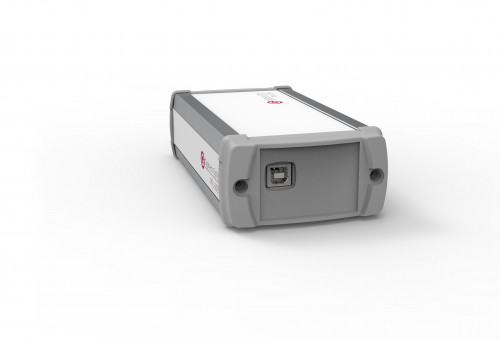

Gigahertz-Optik PFL-200 Optometer respectively Current Amplifier for Radiometric or Photometric Applications

-Measurement range: depends on detector

-Calibration: Factory calibration of amplifier, traceable to national standards

-Sensor: BNC connector (-1)

-min. signal current: 0.1 pA

-Max. signal current: 20 µA

-Microprocessor: 16Bit, 25ns instruction cycle time

-Power Supply: 5VDC, 450mA per USB

-Interface: USB 2.0 (Type B USB)

-Option WiFi: WiFi 2,4 GHz (external antenna, range > 100m) on request

-Temperature range

Operation: +10°C bis +30°C

Storage: -10°C bis +50°C

-Transport case: 333mm x 280mm x 70mm, 650g

-Dimensions: 159mm x 85mm x 45mm (Length x Width x Height)

-Weight: 430 g
