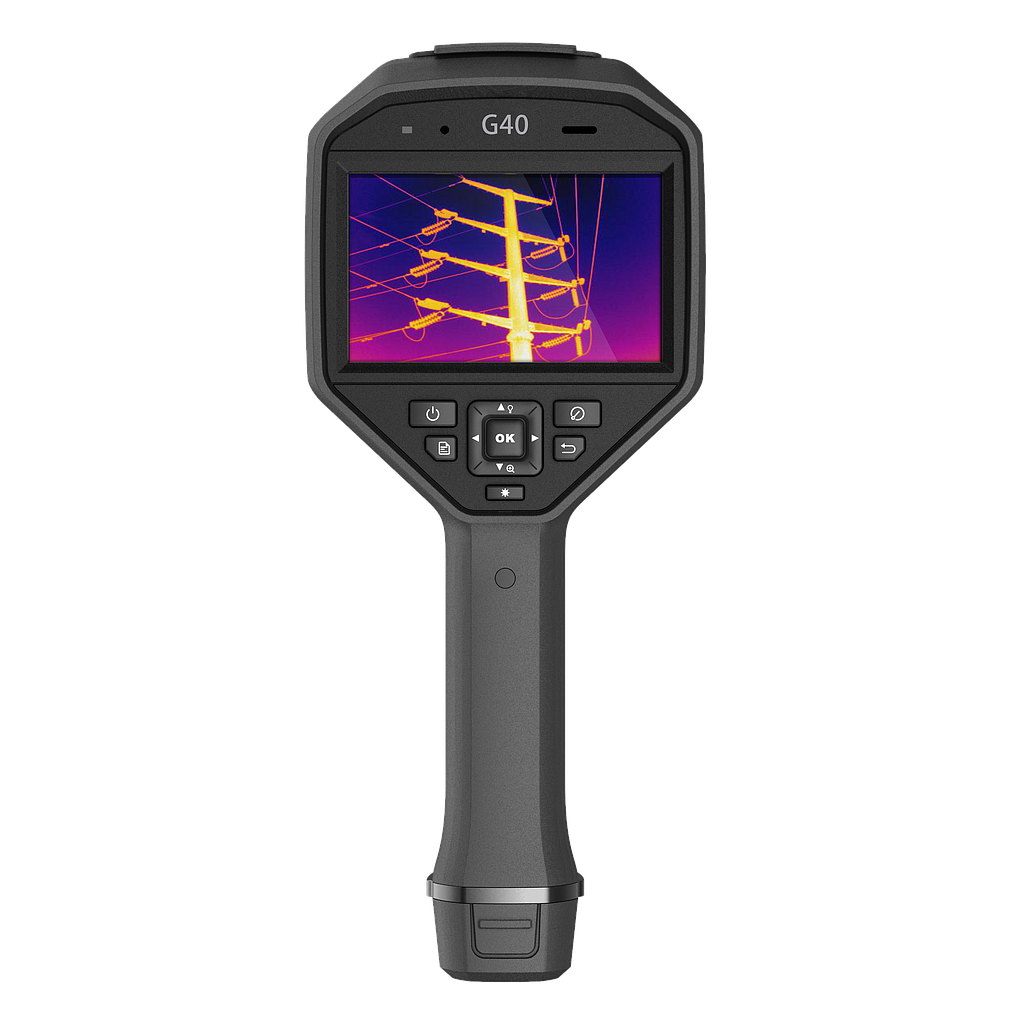

HIKMICRO G40 手持式热成像照相机 (-20~650°C; 480x320px; Zoom 4X, 0.68 mrad)

Thermal Module

Image sensor: Vanadium Oxide Uncooled Focal Plane Arrays

IR resolution: 480 x 360 (172 800 pixels)

Temperature measurement range: -20°C~650°C (-4°F~1202°F)

Pixel pitch: 17μm

Spectrum range: 8-14μm

NETD: < 35mK (@ 25 °C,F#=1.0)

25mm lens

Thermographic accuracy: ±2℃ / ±2%

Focal length: 25mm

FOV (Field of View): 19°×14°

Minimum focus distance: 0.3 m (0.98 ft)

Focus: Continuous Autofocus/Autofocus/Manual Focus/Laser Assisted Focus

IFOV (Spatial Resolution): 0.68 mrad

Image frequency: 50Hz

Aperture: F1.0

Optical Module

Picture resolution: 2 MP, 5 MP, 8 MP

Video resolution: 640 × 480

Focus: Fixed

FOV: 25°×19°

Display: 800 × 480 Resolution, 4.3’’ LCD Touch Screen

Digital Zoom: 4X

Storage

Storage media: Removable Micro SD Card (64 GB)

Image storage capacity: 60 000 Images

Image file format: JPEG with Measurement Data Included

Video storage capacity: 54 hours

Video file format: MP4

Power System

Power supply: 12 V DC/1.5A, 5V DC/2A (Charging via USB)

Power consumption: 5 W

Battery type: Dismountable and Rechargeable Li-ion Battery

Battery operating time: 4 Hours Continuous Running

General

Menu language: 17 Languages

Working temperature range: -20°C~50°C (4°F~122°F)

Storage temperature range: -20°C~60°C (-4°F~140°F)

Protection level: IP54

Drop Test Height: 2 m (6.56 ft)

Interface: USB Type-C

Weight: Approx.1000 g (2.20 lb)

Dimension: 284.7 mm × 118.3 mm × 127.1 mm (11.21” × 4.66” × 5.00”)
