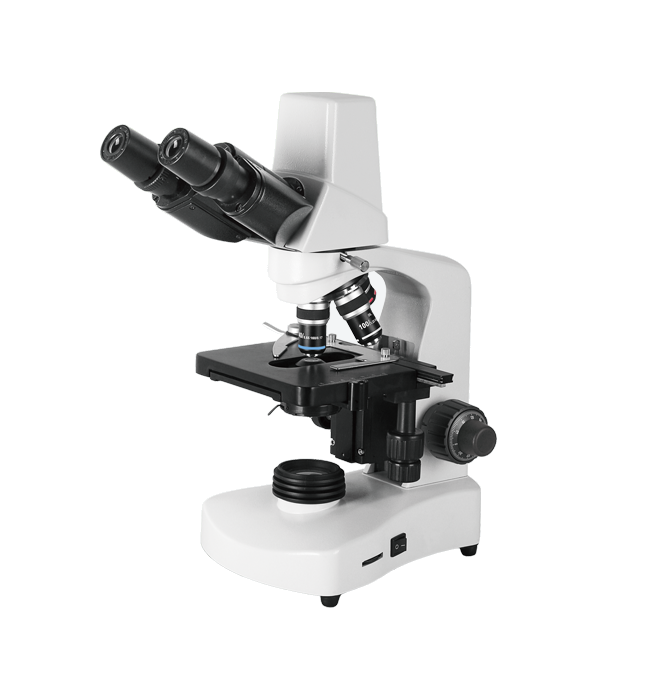

HINOTEK DN-117M 数字显微镜

Viewing Head:

- Compensation Free Binocular Head, Inclined at 30°, Interpupilary Distance 48-75mm

- Camera System: Valid Pixel: 1280×1024（1.3M Pixel）

Output Mode: USB2.0

Opration System: WINDOWS 2000/XP/VISTA

Software: ScopeImaage 9.0

Range of Viewing Field: 90%

Eyepiece: WF10×/ 18

Nosepiece: backward Quadruple Nosepiece

Objective: Achromatic Objective 4×、10×、40×、100×

Stage: Double Layers Mechanical Stage 132×142mm/ 75×40mm

Condenser: Abbe NA1.20 with Iris Diaphragm & Fliter

Focusing: Coaxial Coarse & Fine Adjustment System, Range 24mm, Fine Division 0.004mm

Illumination: LED 3W，Brightness Adjustable
