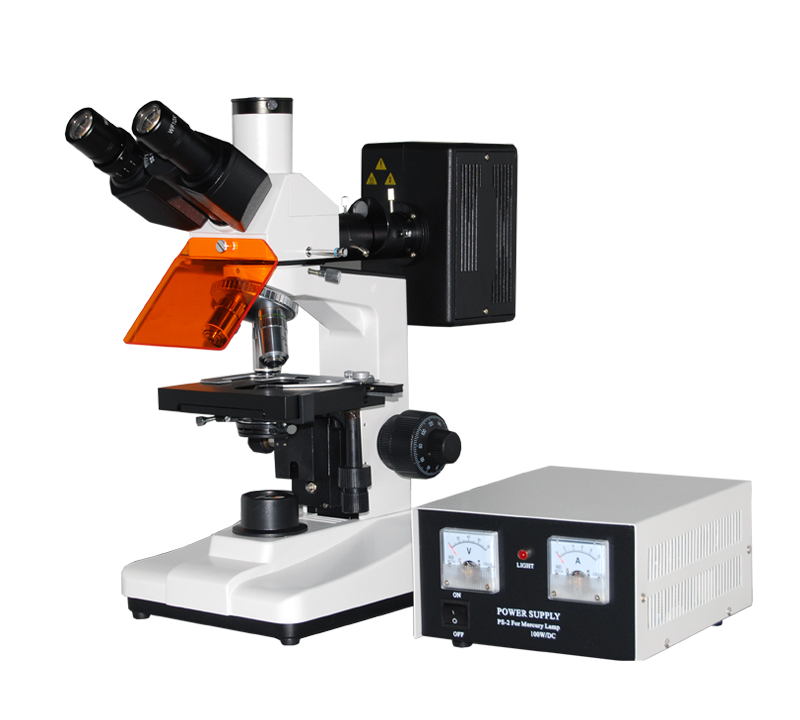

HINOTEK L1501 反射荧光显微镜

Eyepiece: Wide field WF10X(¦µ18mm)

Objective: Achromatic 4X/0.10; Achromatic 10X/0.25; Achromatic 100X/1.25(Spring, oil); Fluorescence 25X/0.65

Eyepiece tube: Trinocular  (inclination of 30˚)

Focus system: Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing: 2μm.

Nosepiece: Quadruple(Backward ball bearing inner locating)

Stage: Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Collector: For halogen lamp

Light source: 6V 20W Halogen lamp with brightness control.

Reflected fluorescence system:

- Mercury lamp house 100W/DC

- Power supply unit:AV:110V or 220V

- Fluorescence filter system  B exciton wavelength:450~490nm

- Fluorescence filter system  G exciton wavelength:495~555nm
