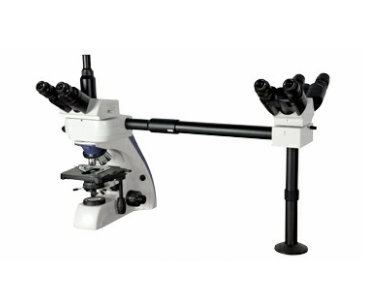

HINOTEK NJ-XSZ-510A 多视角显微镜

Optical system: Infinite Optical System

Viewing Head: Compensation FFree Trinocular Head; Inclined at 30° ( 50mm-70mm ); 2-Binocular head, interpupillary distance adjustable 50mm-75mm

Eyepiece: Plan WF10X/22mm

Objective: Infinity plan objective 4X0.10 , 10X/0.25 ,  40X/0.65,  100X/1.25 Oil

Nosepiece: Quadruple Nosepiece

Stage: Double layers mechanical stage; stage size : 180mmx 160mm; Moving range： 80mmx 50mm

Focusing: Coaxial coarse & fine focusing adjustment, fine focusing scale value 0.002mm

Light Source: Kohler illumination with aperture iris diaphragm and field iris diaphragm; Halogen Bulb 12V/100W，AC85V-230V; brightness adjustable

Indicator: LED cursor，brightness adjustable

Optional Acessory

- Eyepiece WF15X/17mm,WF20 X/12.5mm

- infinity plan objective 20X0.40,60X/0.85

- infinity semi-plan objective4X0.10 、 10X/0.25、 20X/0.40、40X/0.65, 60X/0.85, 100X/1.25 Oil

- Photography attachment and CCD C-mount：0.5X, 0.57X, 0.75X

- 1.3Mega, 2.0Mega, 3.0Mega, 5.0Mega, 10.0Mega

- CMOS Digital camera eyepiece

- CCD Camera,colour1/3 High resolution 700 TV lines

- Image analysis software
