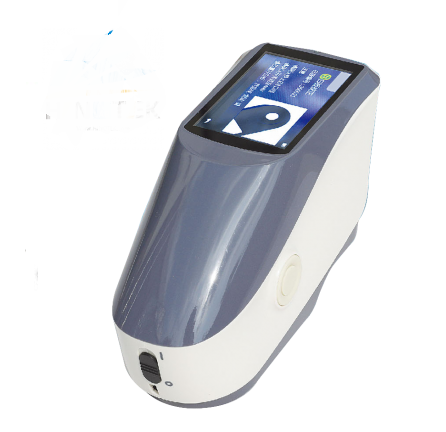

HINOTEK WSF-1B 便携式分光光度计 (45°/0°)

lluminating: 45°/0°

Measuring Aperture: Φ8mm

Wavelength range: 400nm-700nm

Light source: LED

Integrating sphere size: Φ58mm

Sensor: Silicon photocell

Wavelength interval: 10nm

Measuring range of reflectivity: 0-200%

Display: 3.5 inch TFT capacitive touch color screen

Color space: CIELAB, XYZ, Yxy.LCH CIELUV

Color Difference Formula: △E*ab, △E*uv, △E*94, △E*cmc(2:1), △E*cmc(1:1), △E*cmc(ICE), CIE2000, △E*00, △E(h)

Observation of light source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12

Observation Angle: 2°/10°

Display content: Spectrogram/data, sample chromaticity value, color difference value/graph, qualified/unqualified result, color deviation

Measuring time: Approx. 1.5s

Repeatability: Spectral reflectivity: Within 0.1% of standard deviation; Within △E*ab0.04

Storage: 1000 pcs standard samples; 15000 pcs test samples

Battery  Life: More than 3 millions of times in 5 years

Interface: USB to TTL Level

Operating Temperature Range: 0 – 40℃; 0-85%RH(No condensation); Elevation: below 2000 m

Storage Temperature: -20 – 50℃  0-85%RH(No condensation)

Weight(Net): 600g

Dimensions: 90mmx77mmx230mm
