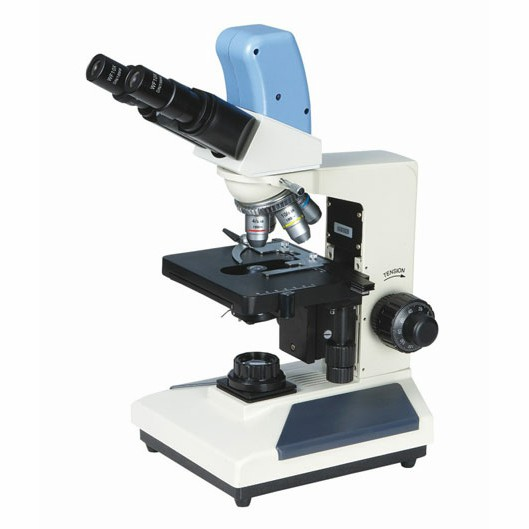

HINOTEK XSZ-120NS 数字显微镜

Viewing Head:  Compensation Free 1.3 Mage pixels CMOS Digital Binocular Head, Inclined at 30°（55mm-75mm）

Eyepiece: WF10×/18mm

Objective:  Achromatic Objectives 4×10×40 ×(s)100×(s)Oil

Condenser:  N.A.1.25 Abbe Condenser with iris diaphragm&filters

Focusing:  Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm

Collector:  High brightness stationary illumination

Light Source:   Halogen Bulb 6V20W. AC85V-230V Adjustable brightness

Compact disc: Driver software(suitable for Windows XP/Vista);   Professional software for  digital microscope(Image preiew, Measurement,; Image process) Operation Manual for installing drover and software

Optional Accessory:

- Eyepiece：WF16×、WF20×Pbjectives：20×、60(s)、Plan

- Objectives：4×10× 20× 40×(s)60×(s)100×(s)Oil、Infinity Plan

- Objectives：4×10× 20× 40×(s)60×(s)100×(s)Oil、

- 2.0Mega、3.0 Mega、5.0 Mega pixels COMS Digitial camera eyepiece

- Compensation Free Binocular & Trinocular Head（48mm-75mm）
