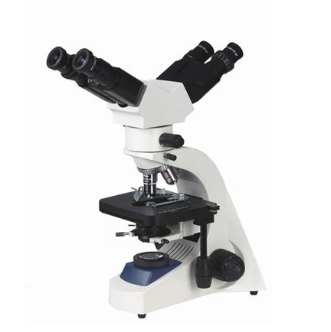

HINOTEK XSZ-148F2A 多视角显微镜

Viewing Head: Dual viewing Compensation Free binocular head(55mm-75mm)

Indicator: LED cursor(Pointer)

Eyepiece: WF10×/22mm

Objective: Infinity Achromatic 4×、10×、40×(s)、100×(s)Oil

Stage: Double layer mechanical stage Stage; Size:180mm×150mm Moving Range:75mm×50mm

Condenser: N.A.1.25 Abbe condenser with iris diaphragm and filter

Focusing: Coaxial coarse & fine focusing adjustment Fine focusing scale value 0.002mm

Light Source: Halogen bulb 6V/20W, AC 220V/110V Fine focusing scale value 0.002mm

Optional Accessory

- Eyepiece：WF16×、WF20×、P16×

- Objective：20×、60(s)Infinity

- Semi-plan Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)

- oil Infinity Plan Achromatic Objective:4×、10×、20×、40×(s)、60×(s)、100×(s)oil

- Phase Contrast Attachment Photography

- attachment and CCD Adapter 0.5×、0.57×、0.75×

- Compensation Free Binocular Head(48mm-75mm)
