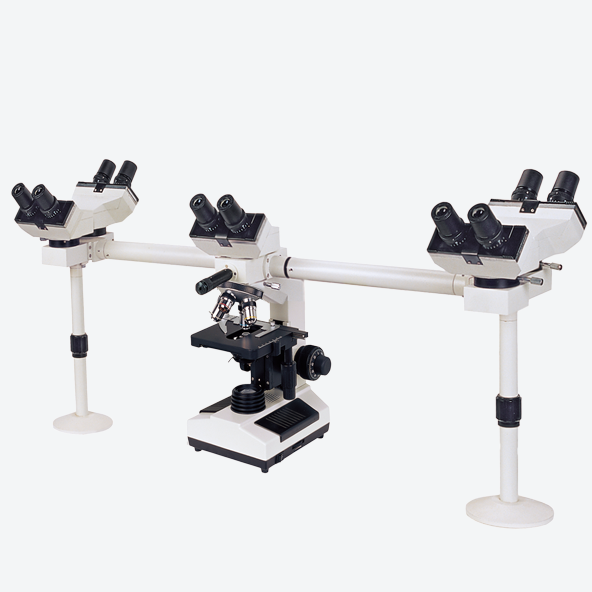

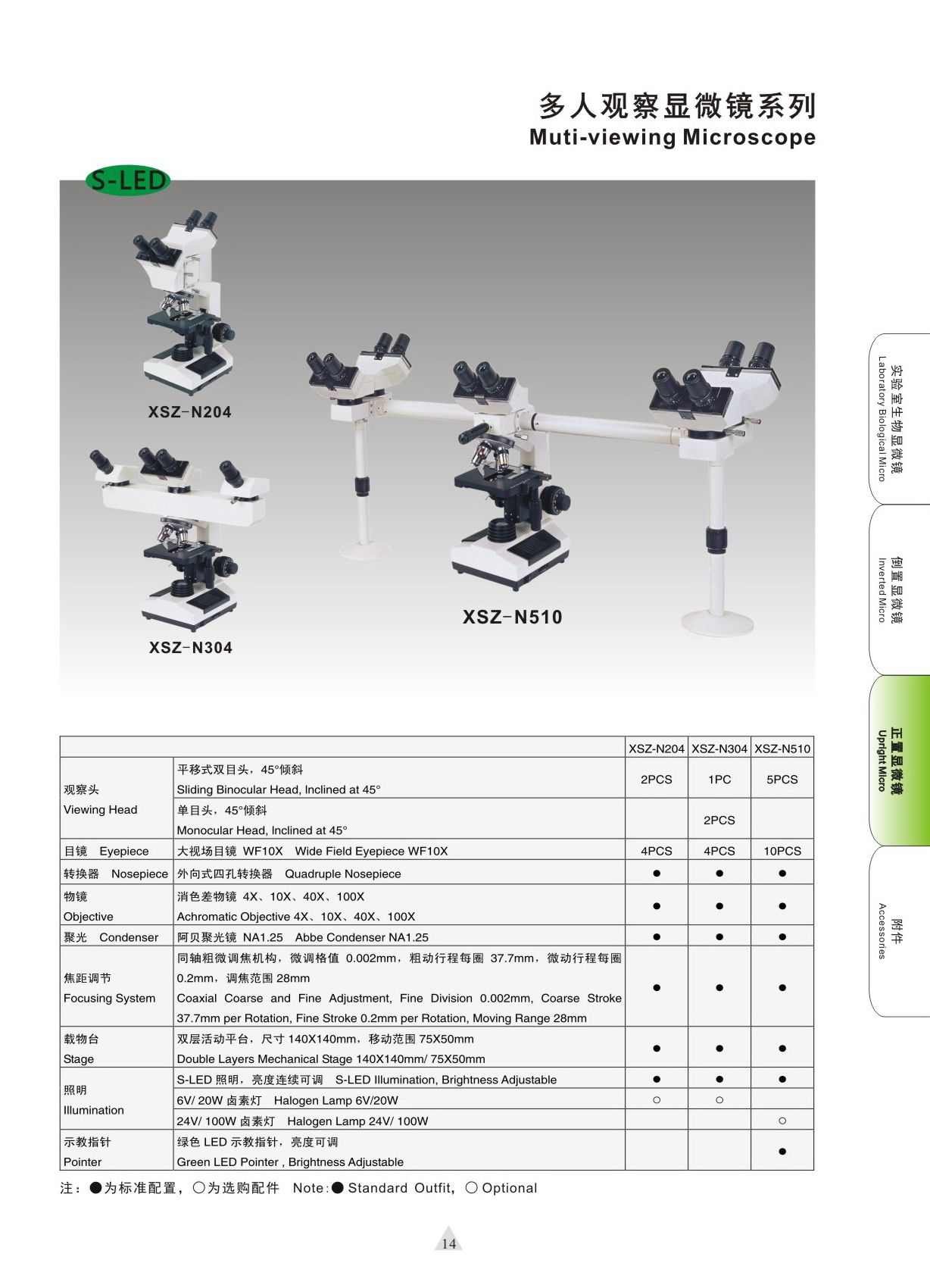

Viewing Head: 2 Pieces Sliding Binocular Head, lnclined at 45°
Eyepiece: 4 Pieces Wide Field Eyepiece WF10X
Nosepiece: Quadruple Nosepiece
Objective: Achromatic Objective 4X、10X、40X、100X
Condenser: Abbe Condenser NA1.25
Focusing System: Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
Stage: Double Layers Mechanical Stage 140X140mm/ 75X50mm
Illumination: S-LED Illumination, Brightness Adjustable; Halogen Lamp 24V/ 100W
Pointer: Green LED Pointer , Brightness Adjustable
