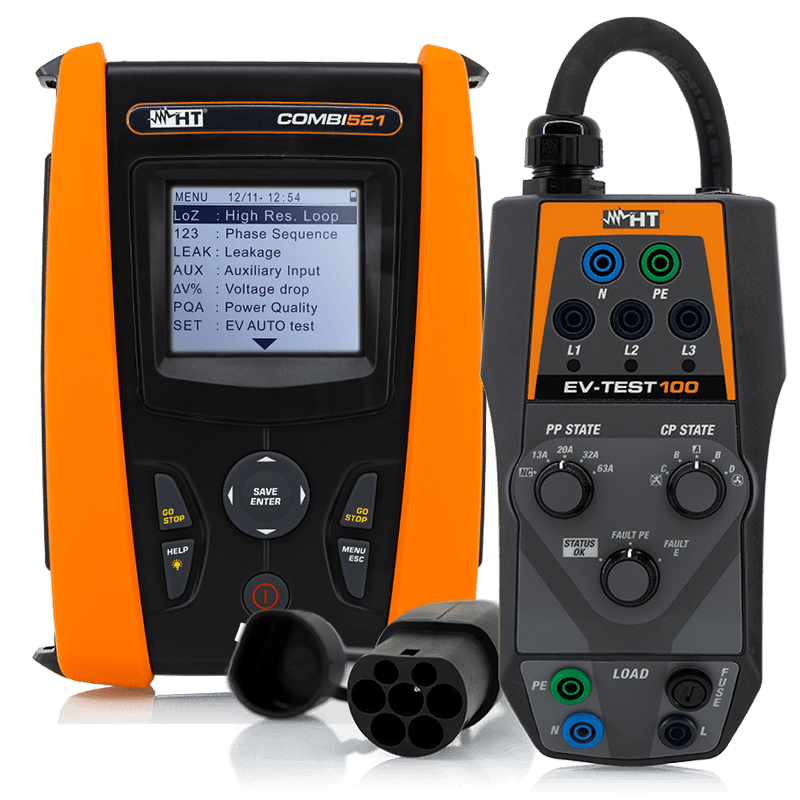

HT COMBI521EV 电气万用表 (15 ~ 460V, 47.50 ~ 52.50, True RMS, RCDs type B, A)

AC TRMS VOLTAGE

Range (V): 15 ~ 460

Resolution (V):1

FREQUENCY

Range (Hz): 47.50 ~ 52.50

Resolution (Hz): 1

CONTINUITY OF PROTECTION CONDUCTORS WITH 200mA

Range )

0.00 ~ 9.99

10.0 ~ 99.9

100 ~ 1999

INSULATION RESISTANCE

DC test voltage (V)/ Range

50

0.01 ~ 9.99

10.0 ~ 49.9

100

0.01 ~ 9.99

10.0 ~ 99.9

100 ~ 199

250

0.01 ~ 9.99

10.0 ~ 99.9

100 ~ 249

250 ~ 499 (5.0 rdg + 2dgt)

500

0.01 ~ 9.99

10.0 ~ 199.9

200 ~ 499

500 ~ 999

1000

0.01 ~ 9.99

10.0 ~ 199.9

200 ~ 999

1000 ~ 1999

MECHANICAL CHARACTERISTICS

Dimensions (L x W x H): 225 x 165 x 75mm (9 x 6 x 3in)

Weight (batteries included): 1.2kg (42 ounces)

Mechanical protection: IP40

POWER SUPPLY

Battery type: 6x1.5V alkaline batteries type AA IEC LR06 or

6 x1.2V rechargeable NiMH type AA

Battery life: > 500 tests for each function

Auto Power OFF: after 5 minutes’ idling (if activated)

ENVIRONMENTAL CONDITIONS FOR USE

Reference temperature: 23°C ~ 5°C (73°F ± 41°F)

Operating temperature: 0°C ~ 40°C (32°F ÷ 104°F)

Allowable relative humidity: <80%RH

Storage temperature: -10°C ~ 60°C (14°F ÷ 140°F)

Storage humidity: <80%RH

Max. operating altitude: 2000m (6562ft)

TECHNICAL SPECIFICATIONS OF EV-TEST100

Technical characteristics:

Input voltage: max 415V AC Phase-Phase, 50/60Hz ±5%

Connection to EVSE system: integrated cable with Type 2 plug, length 60cm

Recharging stations: charging modes 2 and 3

PP Simulation: NC,13A, 20A, 32A, 63A

CP Simulation: status A, B, C, D, ventilation/not ventilation

Simulation EVSE fault: Fault PE, Fault E

CP output signal: PWM communication protocol, 12V

Allowed output load: 240V, 50/60Hz, max 10A AC

Protection fuse: Fast type 250V/10A (5x20mm) (0.2x0.8in)

Mechanical characteristics:

Dimensions (L x W x H): 210 x 115 x 60mm (8 x 5 x 2in)

Weight (with integrated cable): 900g (32ounces)

Mechanical protection: IP40

Reference guidelines:

Safety: IEC/EN61010-1

EMC: IEC/EN61326-1

Sector guidelines: IEC/EN61851-1, IEC/EN60364-7-722

Insulation: double insulation

Measurement category: CAT III 300V

Pollution degree: 2

Environmental specifications:

Working temperature: 0°C  40°C (32°F  104°F)

Working humidity: <80%RH

Storage temperature: -10°C  60°C (14°F  140°F)

Storage humidity: <80%RH

Max operating altitude: 2000m (6562ft

STANDARD ACCESSORIES

SP-0500

User manual on CD-ROM and quick guide

Calibration report

BORSA75

C2033X

UNIVERSALKIT COMBI

TOPVIEW2006
