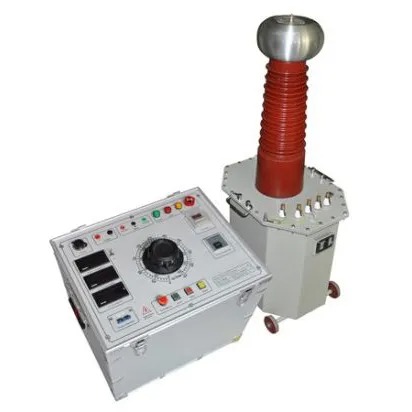

HV HIPOT GDYD-55D AC/DCHipot测试装置 (5kVA / 50kVAC, DC)
制造商: HV HIPOT Model: GDYD-55D - 联系
Input: AC220V ± 10%
Frequency: 50Hz ± 1
Output: 0-50kV, 100mAAC RMS0-50kV, 71.4mADC RMS
Rating: 100%Rated-1minute, 50%-continuous
Capacity: 5kVA (based on selectable)
HV source: Insulation oil (Oil type testing transformer)
Output control: Manual control
Voltage and current accuracy: ≤1.5%(F.S)
Timing range: 0-99H
Metering: Digital display, kV meter: 0-50kV, mA meter: AC 0-100mA
Humidity: 85% RH
Environmental temperature: -20°C ~ 50°C
Weight: Control unit: 20kg, oil testing transformer: 45kg.
