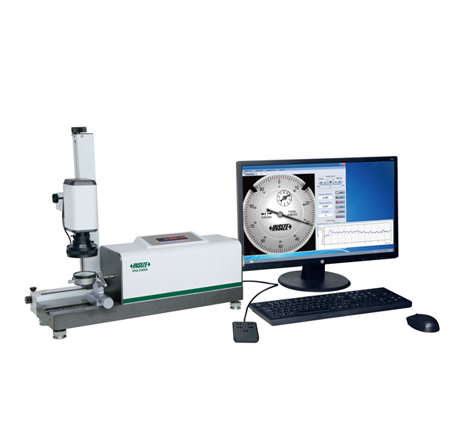

INSIZE ISQ-DB50 自动指示器 (0-50mm;0.1 μm)

Applicable products: dial indicators, digital indicators, dial test indicators and bore gages

Measuring range: 0-50mm

Resolution: 0.1 μm

Repeatability: 0.1 μm

Speed: average 0.6s/point (adjustable). 3 minutes to calibrate a 10mm dial indicator

Accuracy:

- any 1mm: 0.8 μm

- any 2mm: 1.0 μm

- any 10mm: 1.3 μm

- any 30 μm: 1.5 μm

- 50mm: 2.0 μm

Hysteresis: 0.5 μm

Output: RS232

Power supply: 220V, 50Hz

Operation temperature: 20 ±5 °C

Operation humidity: (50~70)%RH

Dimension (LxWxH): 640x240x530mm

Weight: 35kg

Standard delivery:

- Holder for dial indicators and digital indicators (Φ8mm, 3/8”): 1pc

- Holder for dial test indicators (Φ4mm, Φ6mm, Φ8mm): 3pcs

- Holder for bore gages (Φ4-28mm): 1pc

- Computer: 1pc

- Remote controller: 1pc

- Software: 1pc

Optional accessory:

- Holder for split type bore gages: ISQ-DB501

- Cable for INSIZE digital indicators: ISQ-DB502
