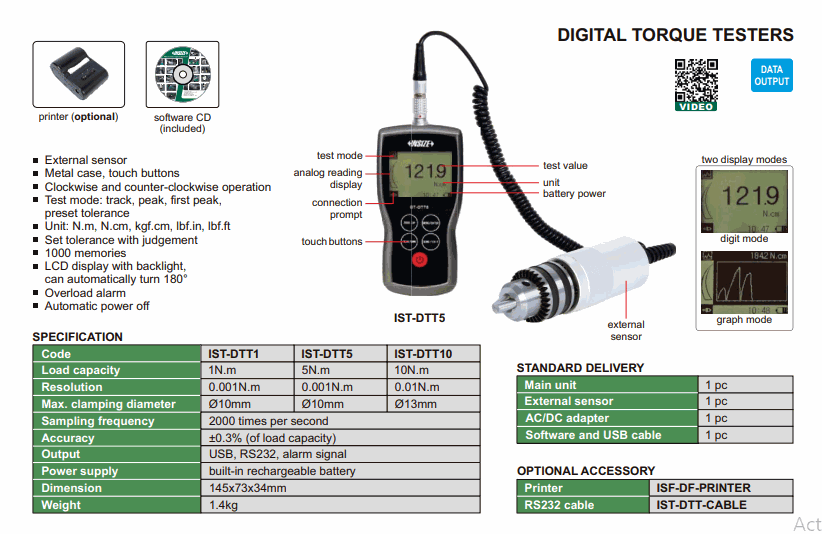

INSIZE IST-DTT5 Digital Torque Tester (5N.m; 0.001N.m; ±0.3%)

Load capacity: 5N.m

Resolution: 0.001N.m

Max. clamping diameter: Φ10mm

Sampling frequency: 2000 times per second

Accuracy: ±0.3%

Output: USB, RS232, alarm signal

Power supply: built-in rechargeable battery

Dimension: 145x73x34mm

Weight: 1.4kg

External sensor

Metal case, touch buttons

Test mode: track, peak, first peak, preset tolerance

Unit: N.m, N.cm, kgf.cm, lbf.in, lbf.ft

Set tolerance with judgement

1000 memories

LCD display with backlight, automatically turn 180°

Overload alarm

Automatic power off

Standard delivery:

- Main unit: 1pc

- External sensor: 1pc

- AC/DC adapter: 1pc

- Software and USB cable: 1pc

Optional accessory:

- Printer: ISF-DF-PRINTER

- RS232 cable: ISF-DTT-CABLE
