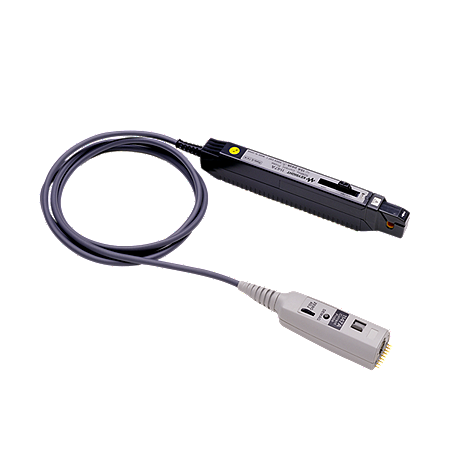

KEYSIGHT 1147B AC/DC 电流示波器探头 (50 MHz, 15A)

Wide bandwidth: DC to 50 MHz

High S/N ratio, low current measurement capability

15A peak, 15 ADC, 10 Arms continuous, 30A peak non-continuous

Easy protect function at excessive input

Demagnetizing switch to remove any residual magnetism that builds up in the magnetic core

Compatible with high impedance AutoProbe interface

For use with 80000/90000 Series, use N278xA current probe with N2779A power supply and E2697A high impedance adapter

For use with 90000 X-Series, use the N5449A high impedance probe adapter
