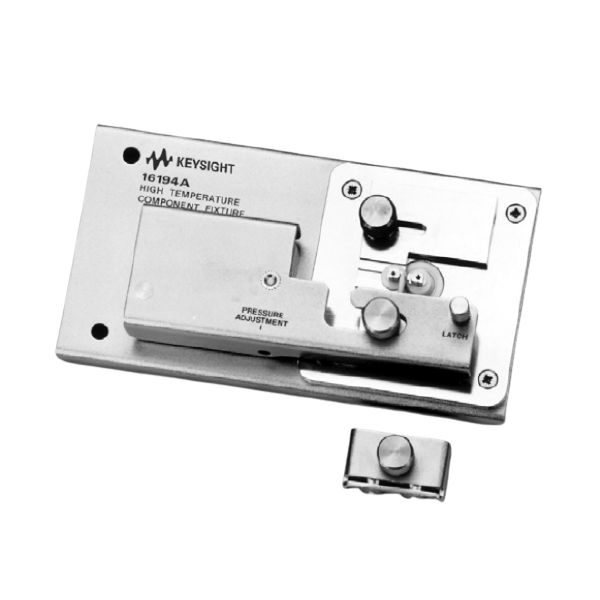

KEYSIGHT 16194A 高温元件测试夹具 ( DC-2GHz, –55~+200°C)

Applicable instrument: E4982A, E4990A + 42942A*, E4991B, E5061B-3L3/3L4/3L5 with Opt. 005 + 16201A

* Option E4990A-120 is required

Frequency:

DC to 500 MHz (with open and short compensation)

DC to 2 GHz (with open and short and load compensation)

Maximum voltage: ±42 V peak max. (AC +DC)

Operating temperature: –55 to +200°C

Dimensions (approx.): 150 (W) x 40 (H) x 80 (D) [mm]

Weight (approx.): 350 g
