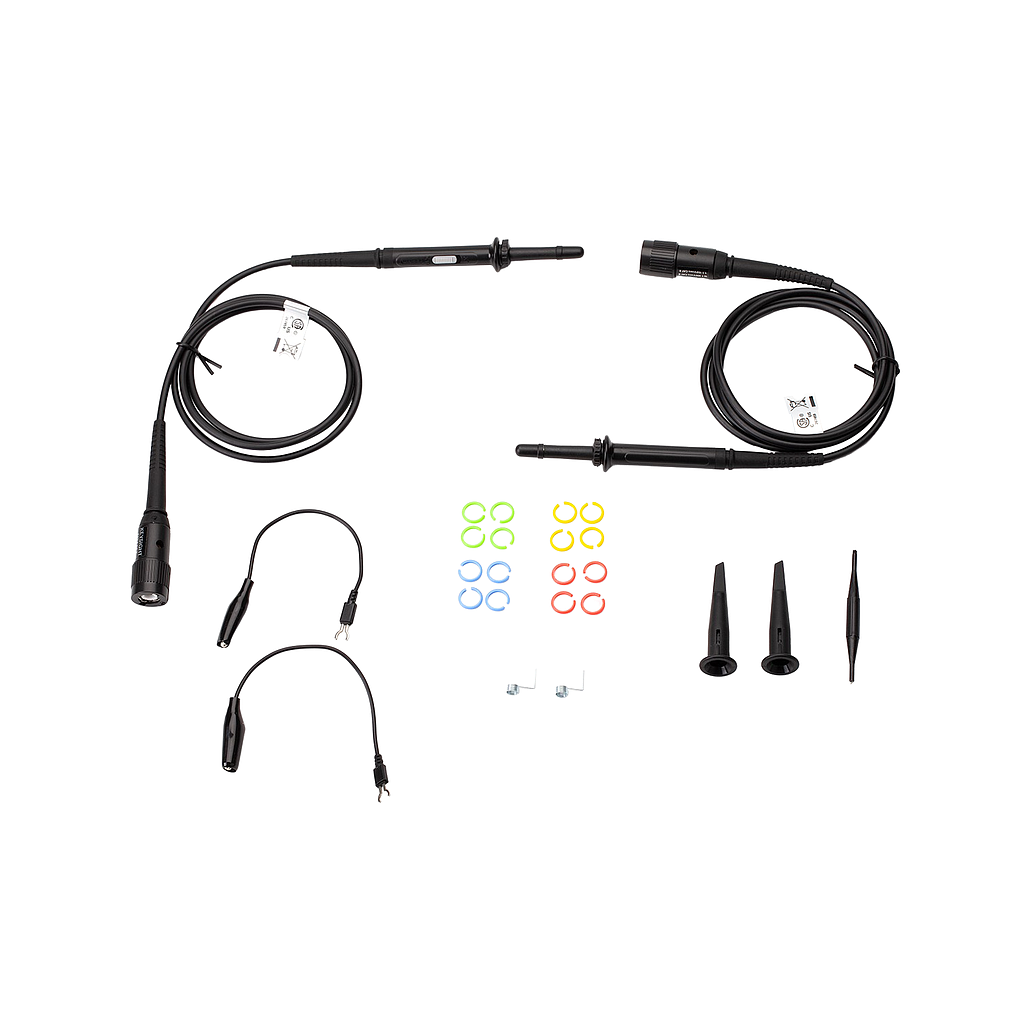

KEYSIGHT N2142A 被动探头 (10:1, 75MHz)

Attenuation Ratio: 1:1 / 10:1

Input Capacitance: 1:1 - 100pf   /   10:1 - 15pf

Compensation range (when terminated into 1 Mohm): 15pf - 30pf

Input Resistance: 1:1 - 1MΩ  /  10:1 - 10MΩ

Maximum Input Voltage:

1:1 - 150V rms CAT II

10:1 - 300V rms CAT II

Bandwidth: 1:1 - 6 MHz   /   10:1 - 75 MHz

Temperature

-10 °C to +55 °C (Operating)

-40 °C to +70 °C (Non-operating)


Details

Datasheet/Manual
