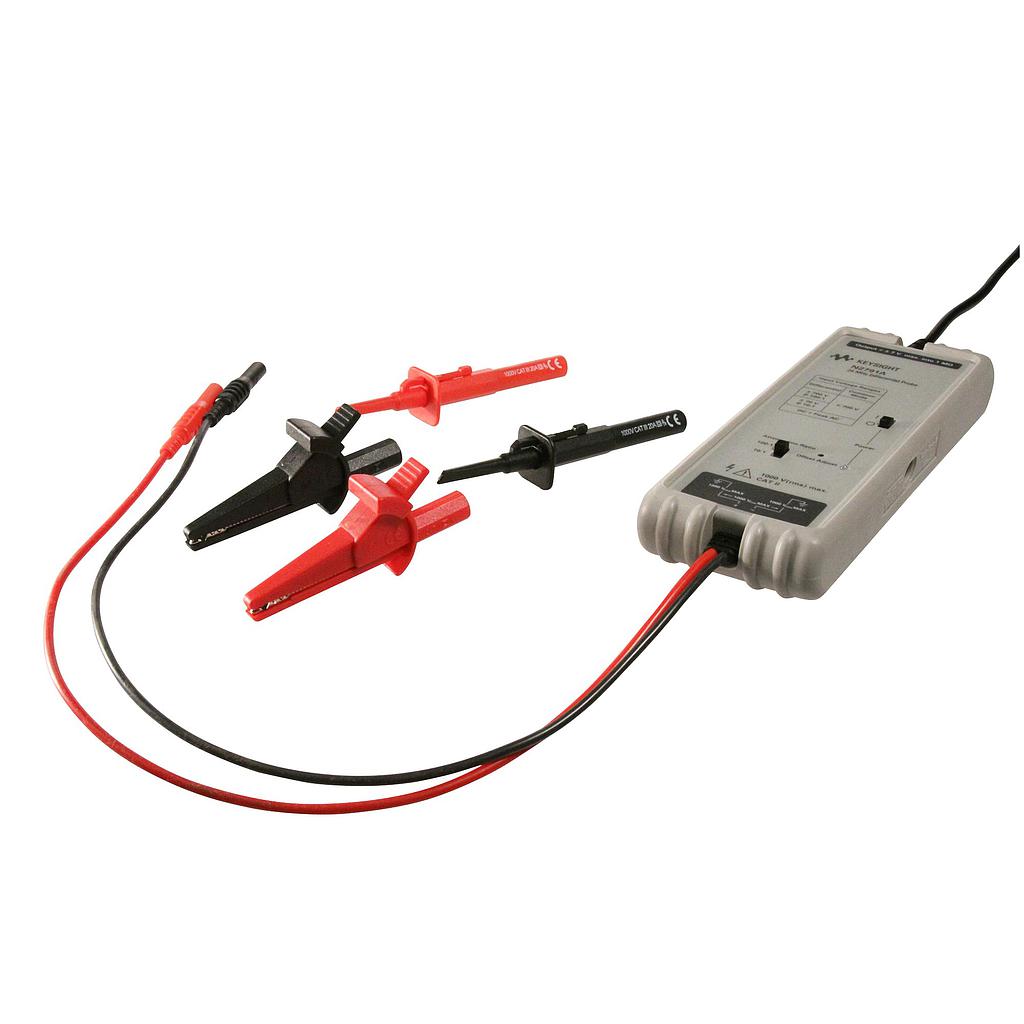

KEYSIGHT N2791A 高压差分探头 (25 MHz, ± 1000 Vrms)

Specifications:

Bandwidth: 25 MHz

Attenuation ratio: 10:1 / 100:1

Input R//C (each input to ground): 4 Mohm // 7 pF

Input R//C (between inputs): 8 Mohm // 3.5 pF

Max differential operating voltage (DC+PeakAC or RMS)

± 700 V at 100:1

± 70 V at 10:1

Max common mode operating voltage (DC+PeakAC or RMS)

± 700 V at 100:1

± 700 V at 10:1

Max nondestructive voltage: ± 1000 Vrms (CAT II) differential and common mode

Output maximum voltage range: 7 V into 1 Mohm (100:1)
