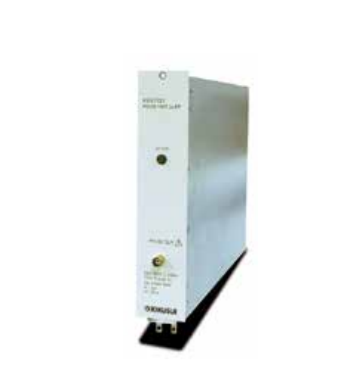

KIKUSUI KES7731 EMC 测试仪 (± 300 V)

Pulse module 3a/3b: Plug-in type

Peak voltage (Us): ±20 V to ±300 V, in steps of 0.1 V

Output impedance (Ri): 2 Ω, 4 Ω, 10 Ω

Rise time (tr): 1 μs (+0 μs, -0.5 μs)

Pulse width (td): 50 μs ±10 μs at No Load ,  40 μs ± 8.0 μs at 4 Ω Load, 12 μs ± 2.4 μs at 2 Ω Load

Repetition interval (t1): 0.2 s to 99 s, in steps of 0.1 s

DC cut time (t2): 1 ms to 100 ms, in steps of 0.1 ms

Surge delay time (t3): Less than 100 μs

Driving power: Supplied from the main frame

Power consumption: -

Dimensions: 50(1.96”)W × 260(10.23”)H × 330(12.99”)D mm

Weight: Approx.  2.5 kg(5.51lbs)
