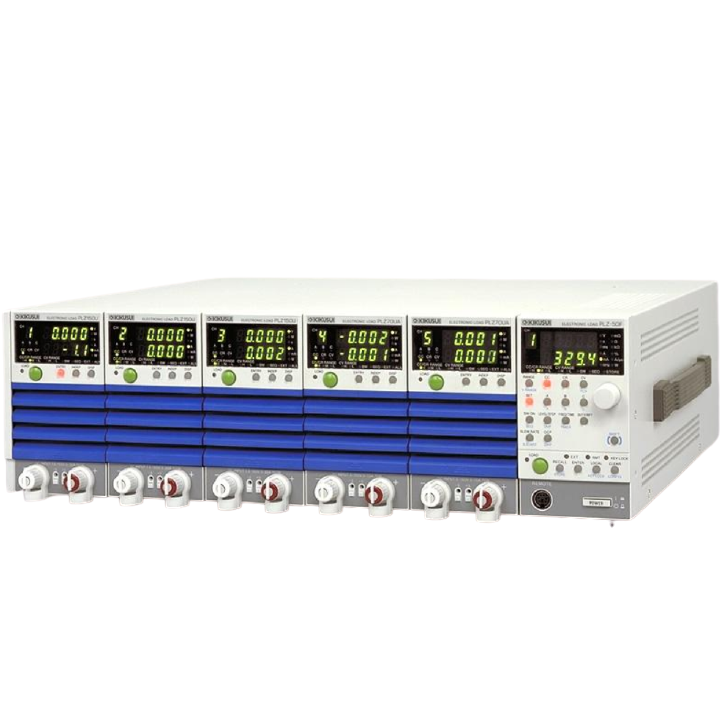

KIKUSUI PLZ-50F Control Frame

Rated supply voltage: 100 VAC to 240 VAC (90 VAC to 250 V) single phase

Rated frequency:  50 Hz or 60 Hz (47 Hz to 63 Hz)

Power consumption:

- Frame alone: 40 VA or less

- When load units are installed in all channels: 500 VAmax

Insulation resistance:  500 VDC, 30 MΩ or more (ambient humidity of 70% RH or less)

Withstand voltage: No abnormalities at 1500 VAC for 1 minute.

Ground continuity:  25 Aac, 0.1Ω  or less

Number of installable load modules: 5

Accessories:

- Power cord

- Blank panel (front panel) : 4pcs max

- Protection dummy plug: 2pcs

- Operation manual

Detail

Datasheet


Manual
